material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

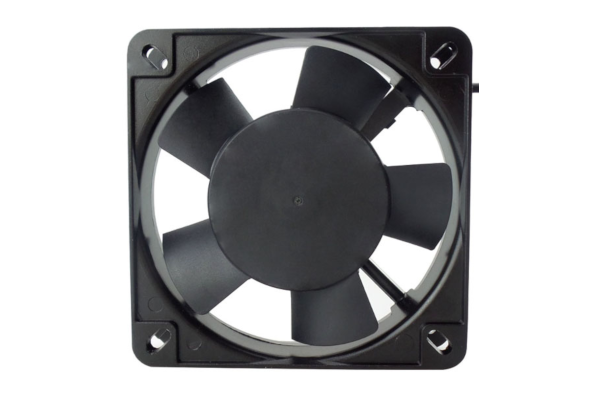

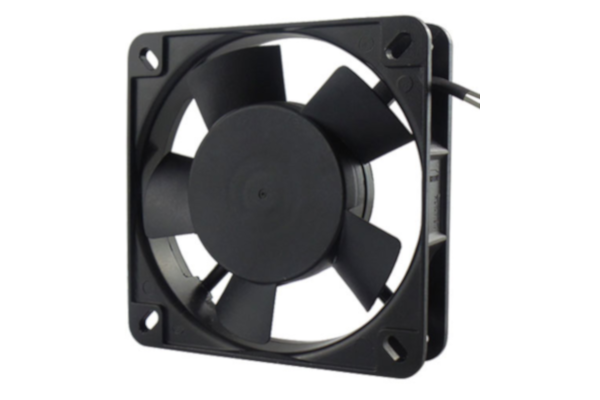

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM11025AS01H | 110*25 | sleeve | 100/125V, 50/60Hz | 0.25/0.23 | 2450/2900 | 60/71 CFM | 36/38 | 400g | ||
| CM11025AS02H | 110*25 | sleeve | 220/240V, 50/60Hz | 0.09/0.08 | 2450/2900 | 60/71 CFM | 36/38 | 400g | ||
| CM11025AS01M | 110*25 | sleeve | 100/125V, 50/60Hz | 0.16/0.15 | 2000/2000 | 52/52 CFM | 33/33 | 400g | ||
| CM11025AS02M | 110*25 | sleeve | 220/240V, 50/60Hz | 0.07/0.07 | 2000/2000 | 52/52 CFM | 33/33 | 400g | ||
| CM11025AS01L | 110*25 | sleeve | 100/125V, 50/60Hz | 0.13/0.11 | 1800/1700 | 46/45 CFM | 28/27 | 400g | ||
| CM11025AS02L | 110*25 | sleeve | 220/240V, 50/60Hz | 0.05/0.05 | 1800/1700 | 46/45 CFM | 28/27 | 400g | ||
| CM11025AB01H | 110*25 | ball | 100/125V, 50/60Hz | 0.25/0.23 | 2450/2900 | 60/71 CFM | 36/38 | 400g | ||
| CM11025AB02H | 110*25 | ball | 220/240V, 50/60Hz | 0.09/0.08 | 2450/2900 | 60/71 CFM | 36/38 | 400g | ||
| CM11025AB01M | 110*25 | ball | 100/125V, 50/60Hz | 0.16/0.15 | 2000/2000 | 52/52 CFM | 33/33 | 400g | ||
| CM11025AB02M | 110*25 | ball | 220/240V, 50/60Hz | 0.08/0.08 | 2000/2000 | 52/52 CFM | 33/33 | 400g | ||
| CM11025AB01L | 110*25 | ball | 100/125V, 50/60Hz | 0.13/0.11 | 1800/1700 | 46/45 CFM | 28/27 | 400g | ||
| CM11025AB02L | 110*25 | ball | 220/240V, 50/60Hz | 0.05/0.05 | 1800/1700 | 46/45 CFM | 28/27 | 400g |
