housing: steel , blade : aluminum
Voltage: AC120/230V(Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 60mm
Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy
Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C
Applications: Suitable for electric fireplaces, home heaters, air purifiers, and floor-supply air conditioning systems.
Installation Method: Standard installation is horizontal. For vertical installation, please specify when ordering.

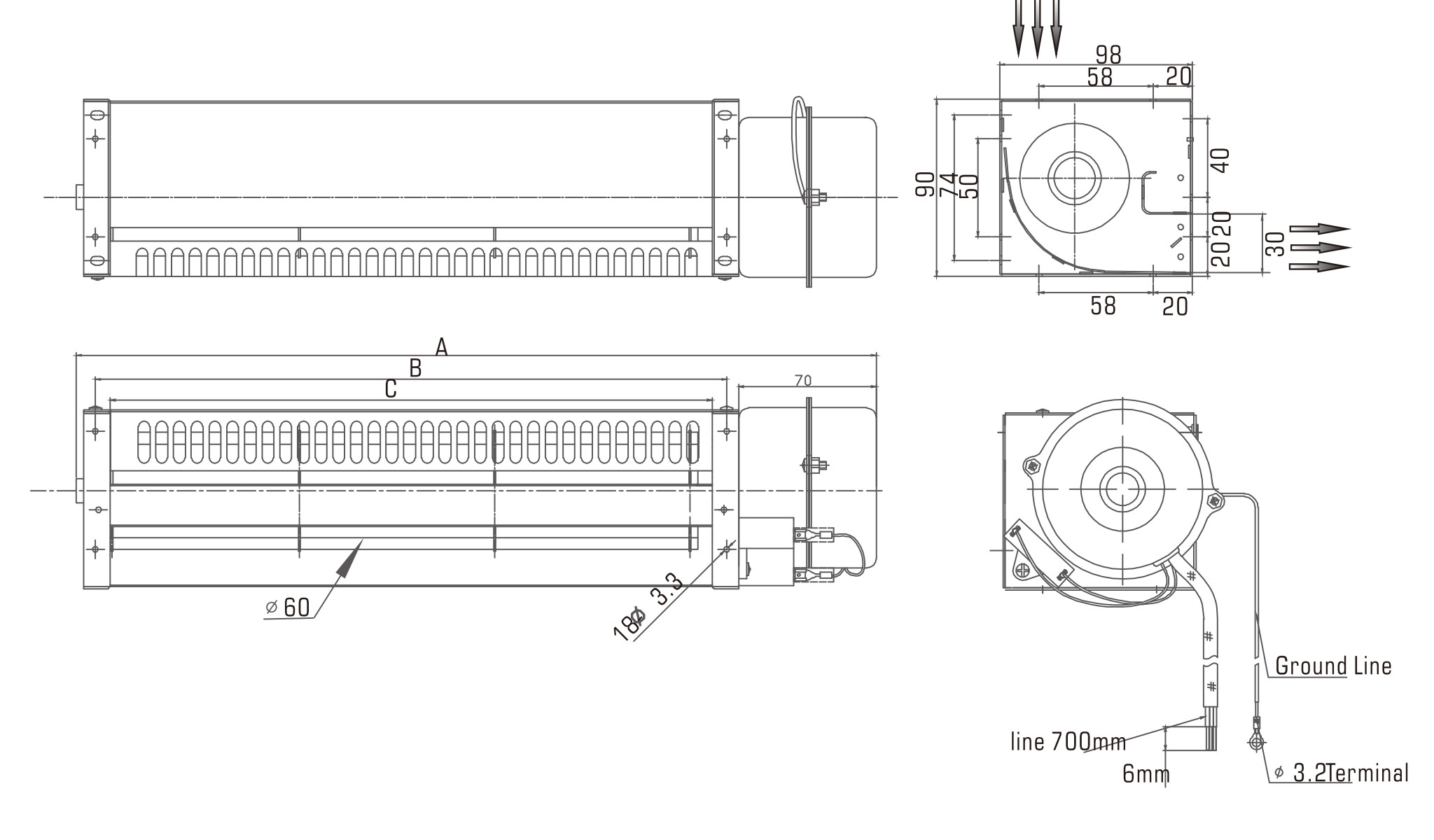

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Power(w) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60180DB02-PF | A=285 B=199 C=184 | NMB ball | 220V/50HZ | 0.24 | 28 | 2800 | 203 | 58 | 46 | |
| CM60240DB02-PF | A=345 B=260 C=245 | NMB ball | 220V/50HZ | 0.13 | 30 | 2700 | 239 | 58 | 45 | |
| CM60300DB02-PF | A=345 B=260 C=245 | NMB ball | 220V/50HZ | 0.15 | 33 | 2700 | 331 | 59 | 47 | |
| CM60360DB02-PF | A=345 B=260 C=245 | NMB ball | 220V/50HZ | 0.16 | 35 | 2600 | 337 | 49 | 49 | |
| CM60420DB02-PF | A=345 B=260 C=245 | NMB ball | 220V/50HZ | 0.17 | 37 | 2500 | 417 | 40 | 50 |
