housing: steel , blade : aluminum
RD,tach output, PWM speed control, temperature control ,locked-rotor,polarity,waterproof
the housing of COOLCOM DC Cross flow fan was punching by precision tooling, electrophoresis treatment, delicacy appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance.

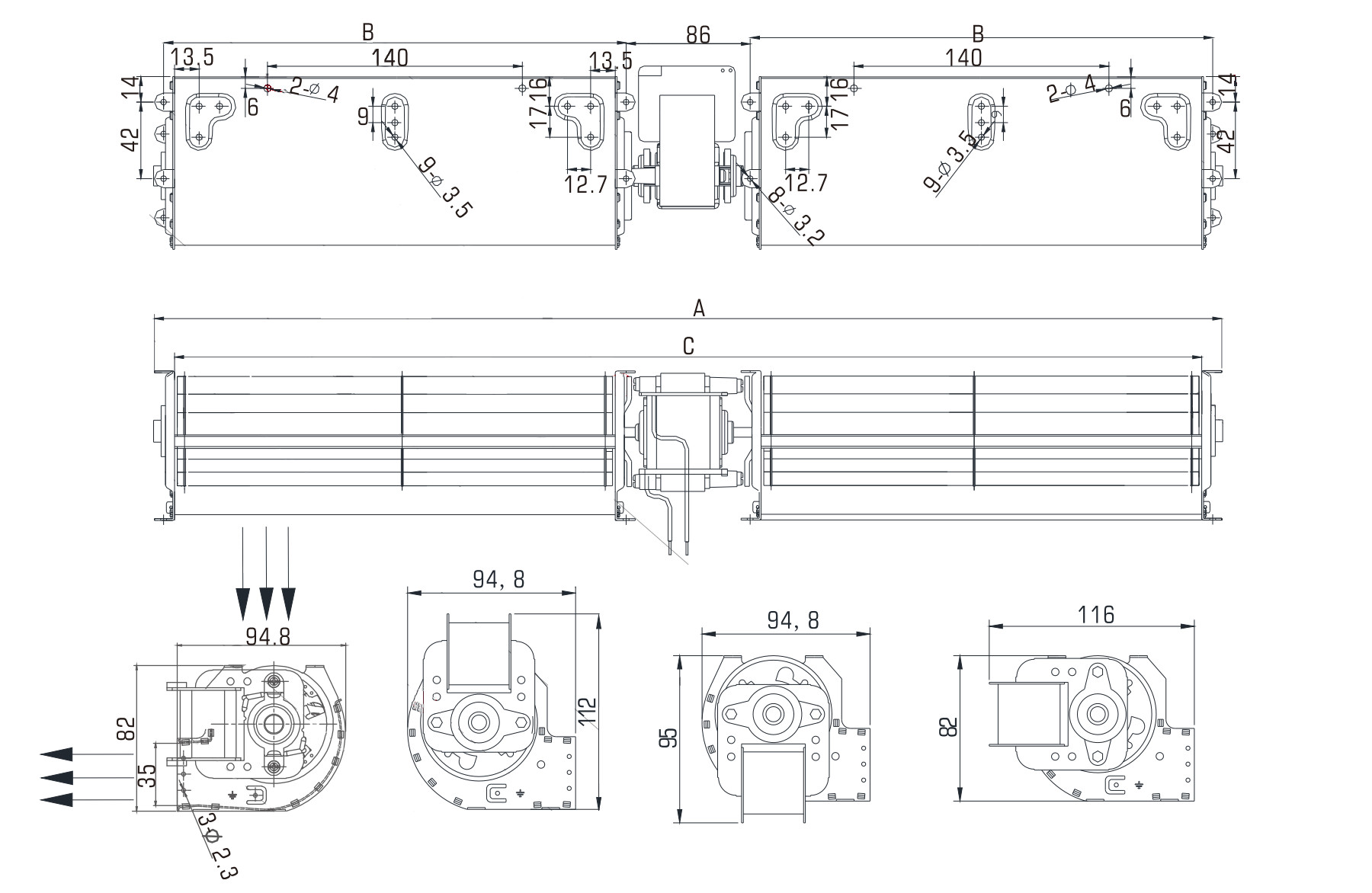

| Model | Size(mm) | Rated Voltage(V/Hz)) | Input Power(w) | Current(A) | Speed(rpm) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60240HB02-PAA | A=588 B=254 C=578 | 220/50 | 40 | 0.36 | 1700 | 335 | 47 | 40 | Double | |
| CM60300HB02-PAA | A=720 B=315 C=710 | 220/50 | 40 | 0.36 | 1550 | 382 | 49 | 42 | Double | |
| CM60350HB02-PAA | A=820 B=365 C=810 | 220/50 | 41 | 0.36 | 1300 | 355 | 58 | 45 | Double | |
| CM60420HB02-PAA | A=960 B=430 C=940 | 220/50 | 41 | 0.37 | 1100 | 368 | 48 | 48 | Double |
