housing : steel; blade : aluminum
Voltage: AC120/230V(Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 60mm
Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy
Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C
Applications: Suitable for electric fireplaces, home heaters, air purifiers, and floor-supply air conditioning systems.
Installation Method: Standard installation is horizontal. For vertical installation, please specify when ordering.

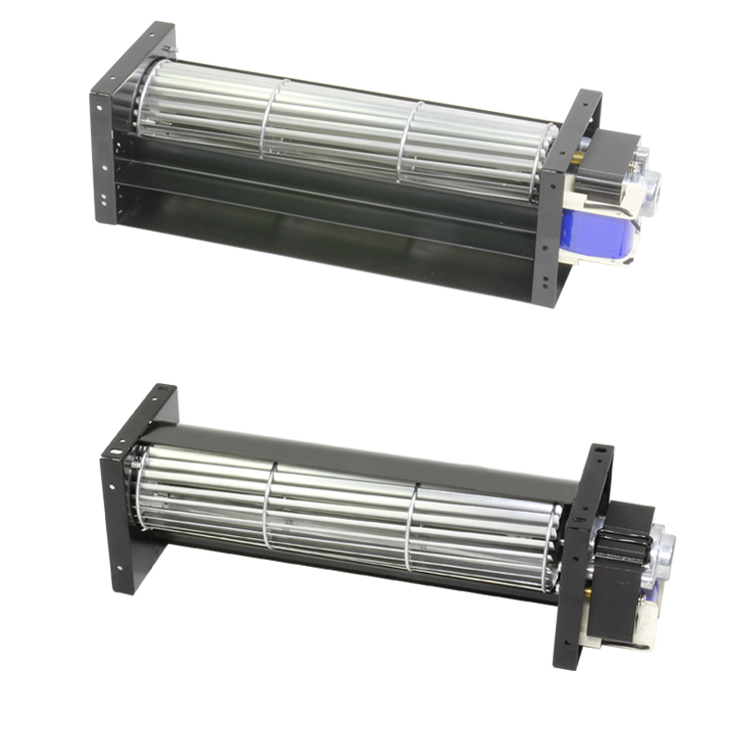

Coolcom Cross flow fan with delicary appearance, stable quality ; large air volume, high air pressure, and low vibration, low noise. with high-temperature-resistant high-efficiency motor, stable performance. according to the customer's requirement, the outlet can be adjusted by 0 , 90 degrees or 180 degrees. The motor available for 110V or 220V

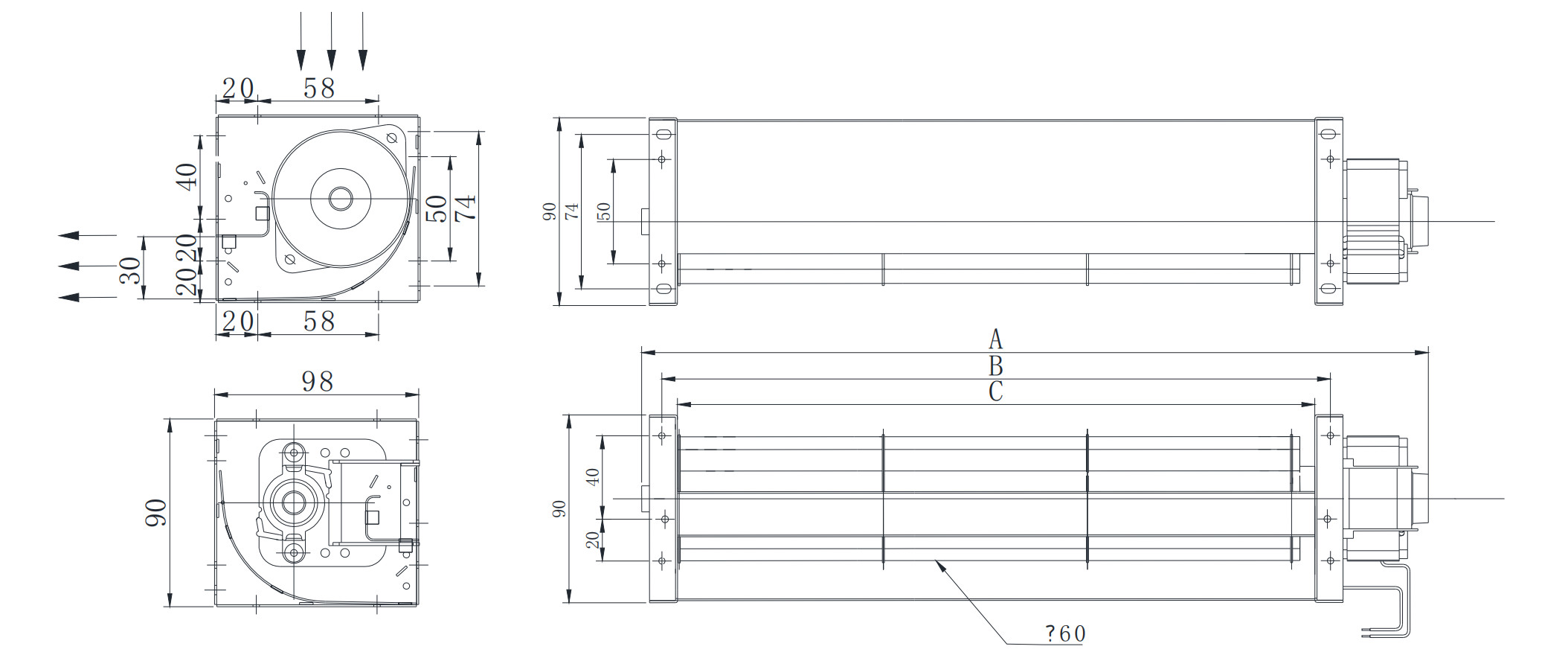

| Model | Size(mm) | Bearing Type | Rated Voltage | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60120HB01 | A=190 B=138 C=123 | ball | 110V/60HZ | 0.47 | 3000 | 141 | 47 | 40 | 1200 | |
| CM60120HB02 | A=190 B=138 C=123 | ball | 230V/50HZ | 0.24 | 2700 | 125 | 40 | 40 | 1200 | |
| CM60180HB01 | A=251 B=199 C=184 | ball | 110V/60HZ | 0.54 | 2600 | 180 | 54 | 47 | 1350 | |
| CM60180HB02 | A=251 B=199 C=184 | ball | 230V/50HZ | 0.25 | 2500 | 166 | 52 | 47 | 1350 | |
| CM60240HB01 | A=312 B=260 C=245 | ball | 110V/60HZ | 0.57 | 2000 | 200 | 50 | 41 | 1400 | |
| CM60240HB02 | A=312 B=260 C=245 | ball | 230V/50HZ | 0.27 | 2300 | 230 | 45 | 44 | 1400 | |
| CM60300HB01 | A=378 B=321 C=306 | ball | 110V/60HZ | 0.99 | 2400 | 270 | 54 | 46 | 1500 | |
| CM60300HB02 | A=378 B=321 C=306 | ball | 230V/50HZ | 0.47 | 2300 | 280 | 54 | 46 | 1500 | |
| CM60360HB01 | A=440 B=380 C=368 | ball | 110V/60HZ | 1.01 | 1900 | 280 | 41 | 43 | 1600 | |
| CM60360HB02 | A=440 B=380 C=368 | ball | 230V/50HZ | 0.49 | 1950 | 280 | 47 | 43 | 1600 | |
| CM60420HB01 | A=501 B=444 C=429 | ball | 110V/60HZ | 1.01 | 1600 | 245 | 21 | 43 | 1650 | |
| CM60420HB02 | A=501 B=444 C=429 | ball | 230V/50HZ | 0.41 | 1800 | 265 | 23 | 44 | 1650 |
