housing : steel , blade :aluminum
Voltage: AC120/230V(Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 50mm

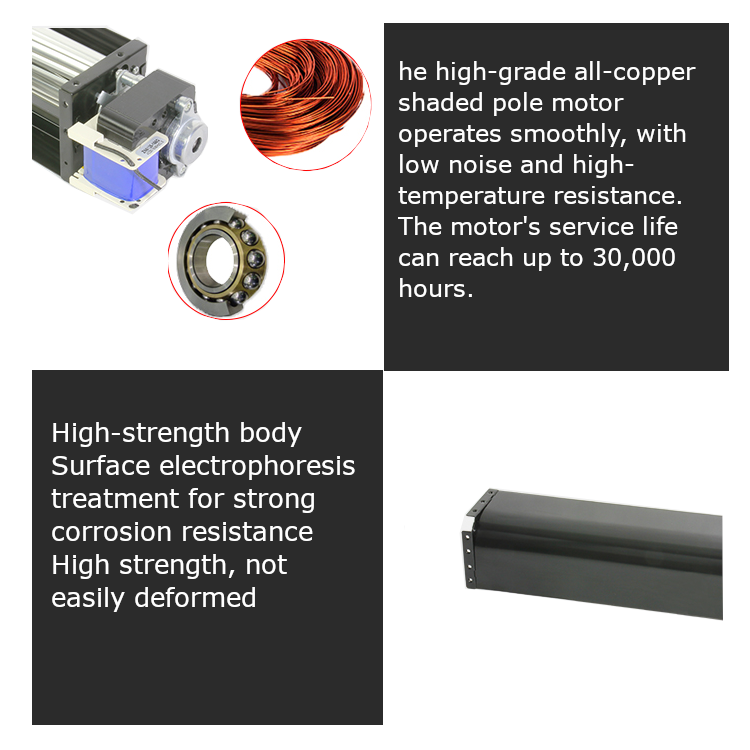

Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy

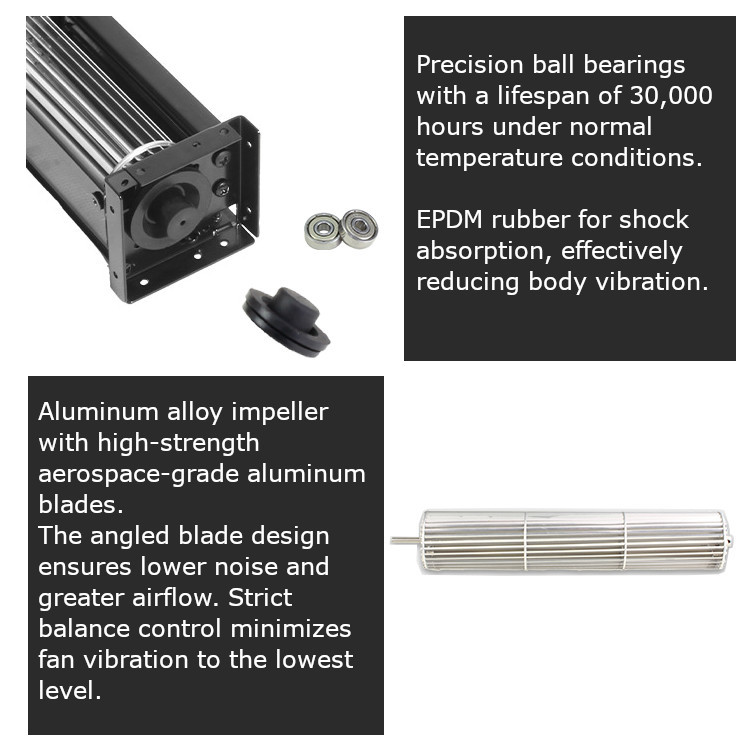

Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C
Applications: Suitable for electric fireplaces, home heaters, air purifiers, and floor-supply air conditioning systems.
Installation Method: Standard installation is horizontal. For vertical installation, please specify when ordering.

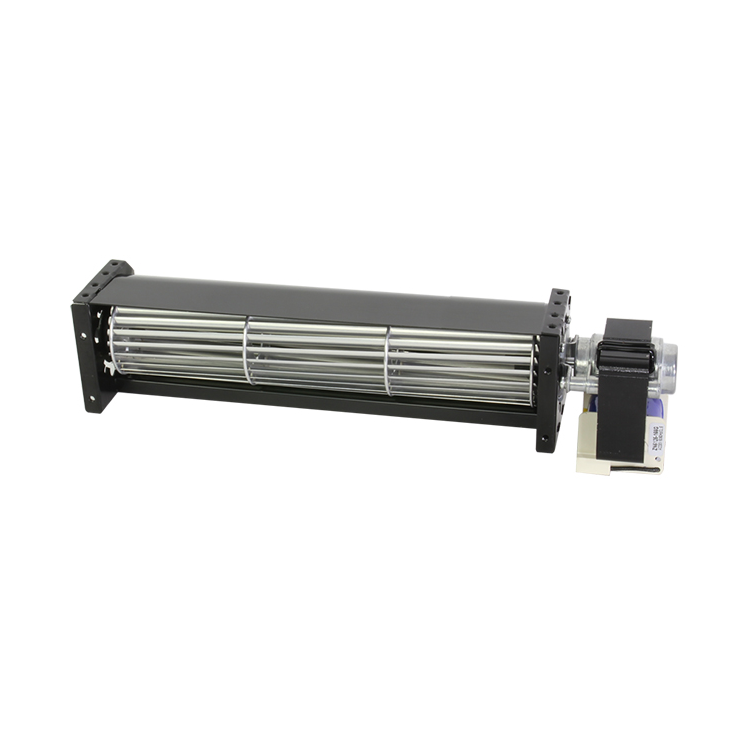

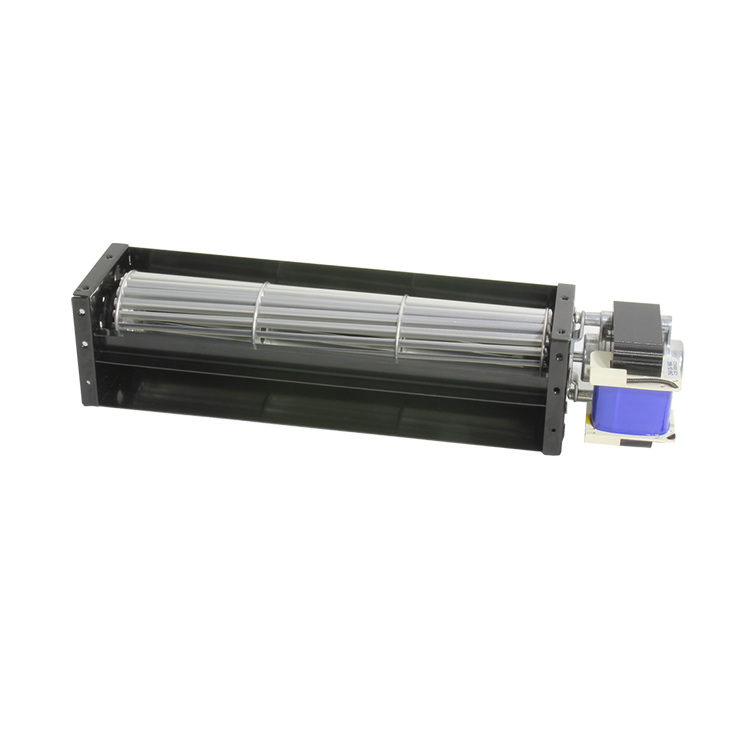

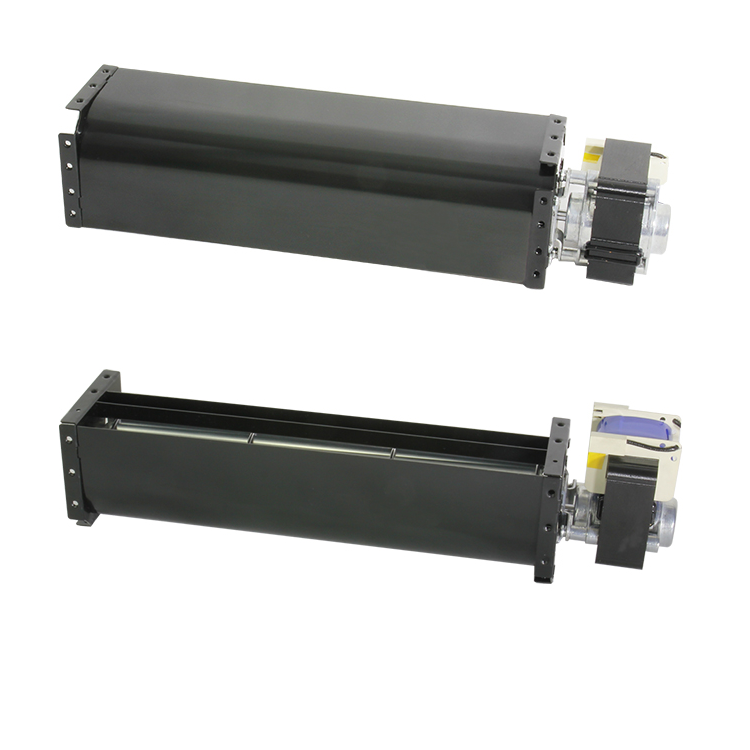

the housing of Cross flow fan was punching by precision tooling, electrophoresis treatment, delicary appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance. according to the customer's requirement, the outlet can be adjusted to 0 , 90 degrees or 180 degrees. The motor available for 110V or 220V

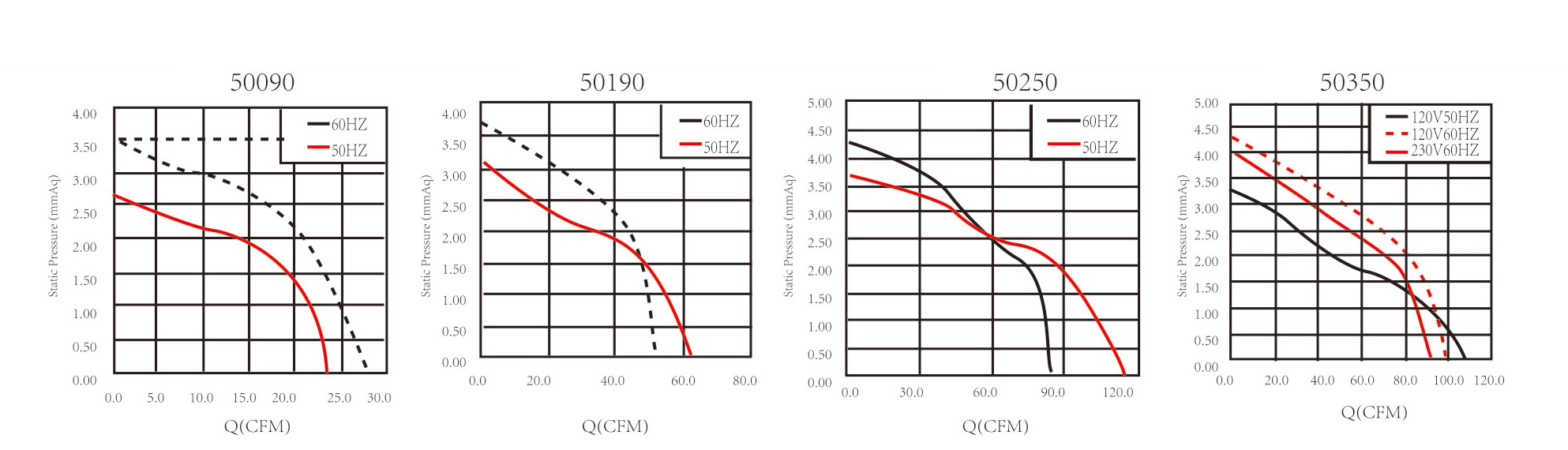

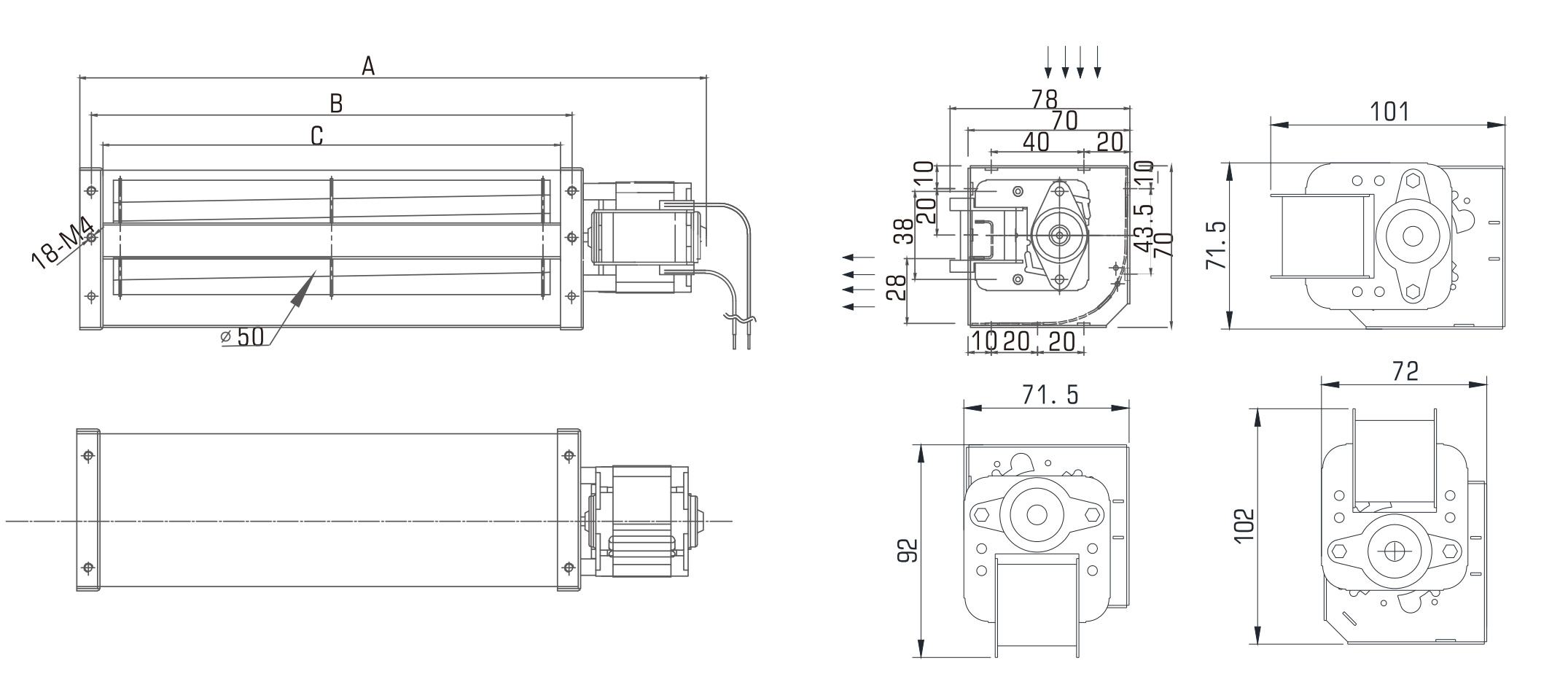

| Model | Size(mm) | Bearing Type | Rated Voltage | Current(A) | Power(w) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM50090HB01-PIB | A=170 B=108 C=98 | BALL | 120V/60HZ | 0.45 | 27.2 | 3300 | 70 | 44 | 40 | |
| CM50090HB02-PIB | A=170 B=108 C=98 | BALL | 230V/50HZ | 0.23 | 25.2 | 2800 | 56 | 37 | 40 | |
| CM50150HB01-PIB | A=231 B=168 C=158 | BALL | 120V/60HZ | 0.47 | 30.1 | 3100 | 131 | 41 | 40 | |
| CM50150HB02-PIB | A=231 B=168 C=158 | BALL | 230V/50Hz | 0.24 | 25.9 | 2700 | 115 | 37 | 40 | |
| CM50190HB01-PIB | A=271 B=208 C=198 | BALL | 120V/60HZ | 0.48 | 32.1 | 2900 | 174 | 40 | 42 | |
| CM50190HB02-PIB | A=271 B=208 C=198 | BALL | 230V/50HZ | 0.24 | 28.2 | 2600 | 158 | 38 | 42 | |
| CM50250HB01-PIB | A=326 B=258 C=248 | BALL | 120V/60HZ | 0.5 | 33.5 | 3000 | 205 | 42 | 44 | |
| CM50250HB02-PIB | A=326 B=258 C=248 | BALL | 230V/50HZ | 0.25 | 30.6 | 2600 | 128 | 39 | 42 | |
| CM50290HB01-PIB | A=376 B=308 C=298 | BALL | 120V/60HZ | 0.52 | 34.5 | 2900 | 234 | 45 | 45 | |
| CM50290HB02-PIB | A=376 B=308 C=298 | BALL | 230V/50HZ | 0.26 | 31.2 | 2600 | 208 | 40 | 43 | |
| CM50350HB01-PIB | A=436 B=368 C=358 | BALL | 120V/60HZ | 0.92 | 58 | 3100 | 292 | 49 | 46 | |
| CM50350HB02-PIB | A=436 B=368 C=358 | BALL | 223V/50HZ | 0.46 | 51 | 2700 | 271 | 44 | 44 | |
| CM50420HB01-PIB | A=496 B=428 C=418 | BALL | 120V/60HZ | 0.96 | 62.4 | 3000 | 337 | 45 | 46 | |
| CM50420HB02-PIB | A=496 B=428 C=418 | BALL | 223V/50HZ | 0.47 | 52.4 | 2600 | 308 | 49 | 44 |
