housing: steel , blade : aluminum
Voltage: AC120/230V(Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 50mm

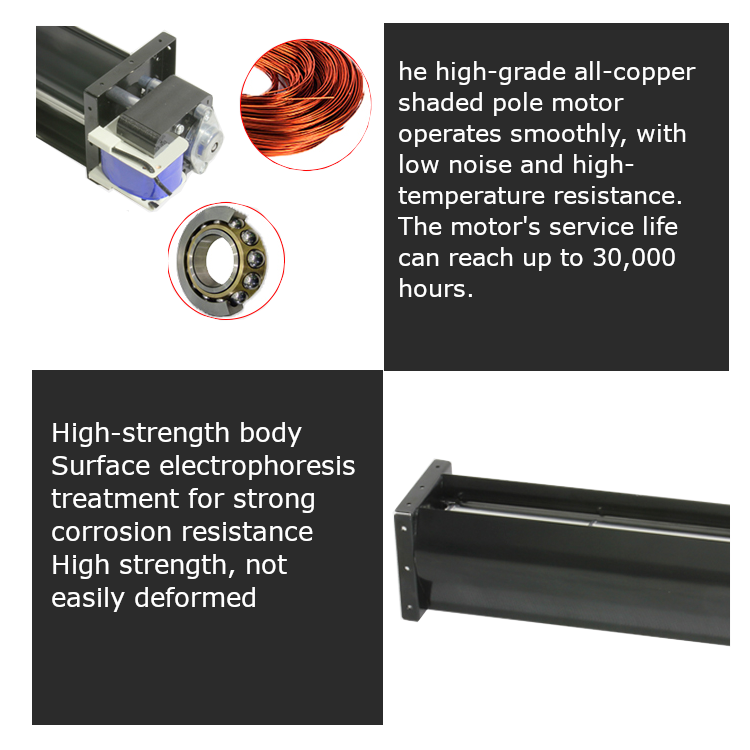

Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy

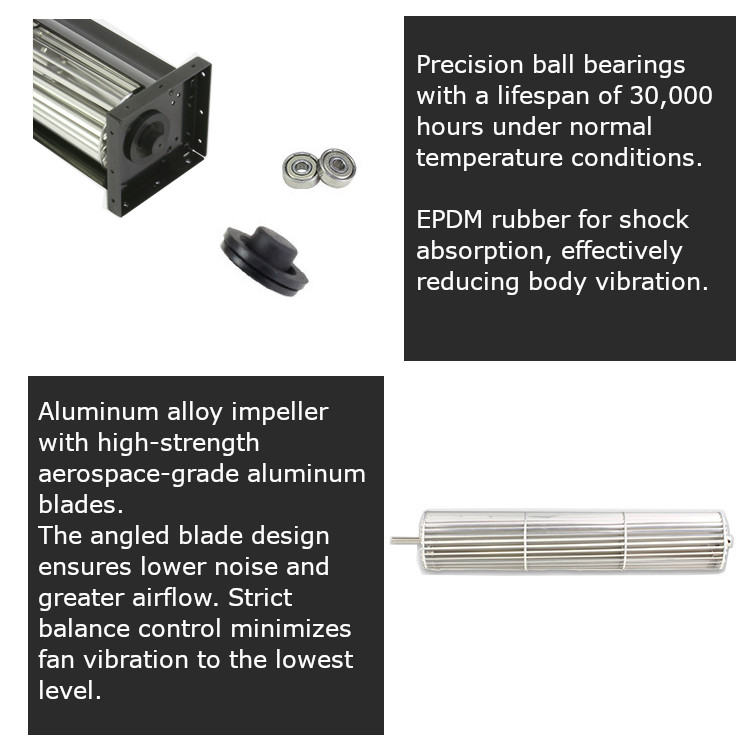

Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C
Applications: Suitable for electric fireplaces, home heaters, air purifiers, and floor-supply air conditioning systems.
Installation Method: Standard installation is horizontal. For vertical installation, please specify when ordering.

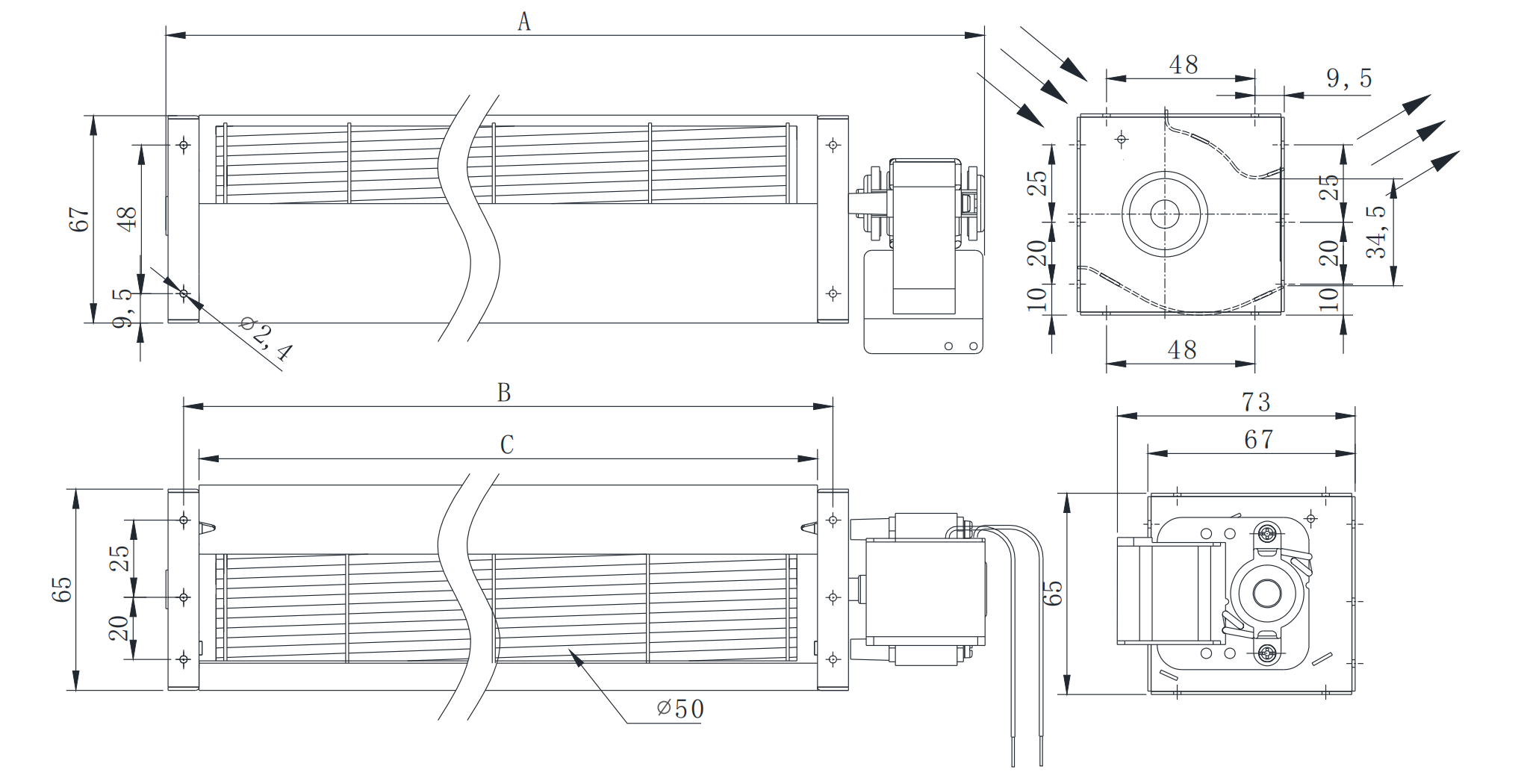

| Model | Size(mm) | Bearing Type | Rated Voltage | Current | Input Power(w) | Speed(rpm) | Air Flow(m3/min) | Pressure(pa) | Noise(db) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM50090HB01-PA | A=163 B=110 C=100 | BALL | 120V/60HZ | 0.37 | 20.7 | 3200 | 60 | 44 | 40 | |
| CM50090HB02-PA | A=163 B=110 C=100 | BALL | 220V/50HZ | 0.15 | 17 | 2700 | 50 | 37 | 40 | |
| CM50150HB01-PA | A=223 B=170 C=160 | BALL | 120V/60HZ | 0.38 | 21.6 | 3100 | 106 | 41 | 40 | |
| CM50150HB02-PA | A=223 B=170 C=160 | BALLL | 220V/50HZ | 0.15 | 17.3 | 2500 | 60 | 37 | 40 | |
| CM50190HB01-PA | A=263 B=210 C=200 | BALL | 120V/60HZ | 0.38 | 2303 | 3000 | 150 | 40 | 42 | |
| CM50190HB02-PA | A=263 B=210 C=200 | BALL | 220V/50HZ | 0.16 | 17.6 | 2500 | 125 | 38 | 42 | |
| CM50250HB01-PA | A=318 B=260 C=250 | BALL | 120V/60HZ | 0.38 | 19.7 | 3000 | 190 | 42 | 44 | |
| CM50250HB01-PA | A=318 B=260 C=250 | BALL | 220V/50HZ | 0.18 | 19.8 | 2600 | 153 | 39 | 42 | |
| CM50290HB01-PA | A=368 B=310 C=300 | BALL | 120V/60HZ | 0.32 | 20 | 2800 | 187 | 40 | 43 | |
| CM50290HB01-PA | A=368 B=310 C=300 | BALL | 220V/50HZ | 0.18 | 19.6 | 2500 | 187 | 40 | 43 | |
| CM50350HB01-PA | A=428 B=270 C=360 | BALL | 120V/60HZ | 0.33 | 20.9 | 2700 | 225 | 49 | 48 | |
| CM50350HB01-PA | A=428 B=270 C=360 | BALL | 220V/50HZ | 0.18 | 20 | 2500 | 216 | 44 | 48 | |
| CM50420HB01-PA | A=488 B=430 C=420 | BALL | 120V/60HZ | 0.35 | 22.1 | 2500 | 252 | 54 | 52 | |
| CM50420HB01-PA | A=488 B=430 C=420 | BALL | 220V/50HZ | 0.19 | 21.1 | 2300 | 206 | 49 | 49 |
