housing: steel , blade : aluminum
Voltage: AC120/230V (Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 30mm
Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy
Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C

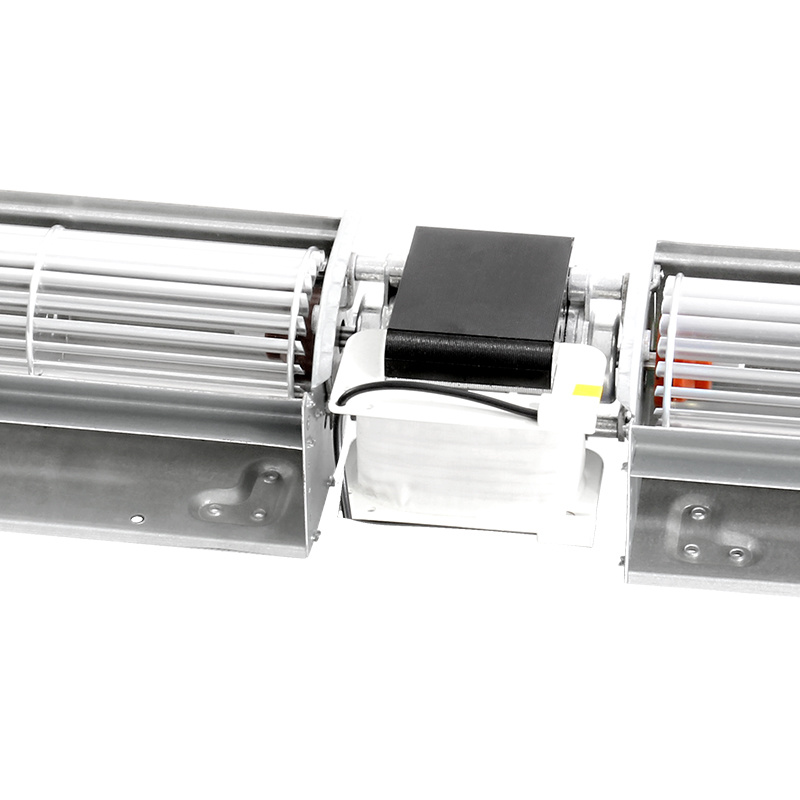

the housing of Cross flow fan was punching by precision tooling, electrophoresis treatment, delicary appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance. according to the customer's requirement, the outlet can be adjusted to 0 ,90 degrees or 180 degrees. The motor is available for 110V or 220V
| Model | impeller Size | Bearing Type | Voltage/Frequency(V/Hz) | Input Power(W) | Speed(RPM) | Air Flow(m3/h) | Pressure(Pa) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM48240HB02-PBB | A=584 B=208 C=572 | NMB | 220/50 | 43 | 2300 | 370 | 34 | 42 | - | |
| CM48300HB02-PBB | A=706 B=269 C=694 | NMB | 220/50 | 46 | 2100 | 350 | 33 | 40 | - | |
| CM48350HB02-PBB | A=796 B=314 C=784 | NMB | 220/50 | 47 | 1500 | 280 | 28 | 38 | - | |
| CM48420HB02-PBB | A=936 B=384 C=924 | NMB | 220/50 | 47 | 1350 | 270 | 25 | 36 | - |
