Material:

housing :steel; blade : aluminum

Optional functions:

Voltage: AC120/230V(Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available

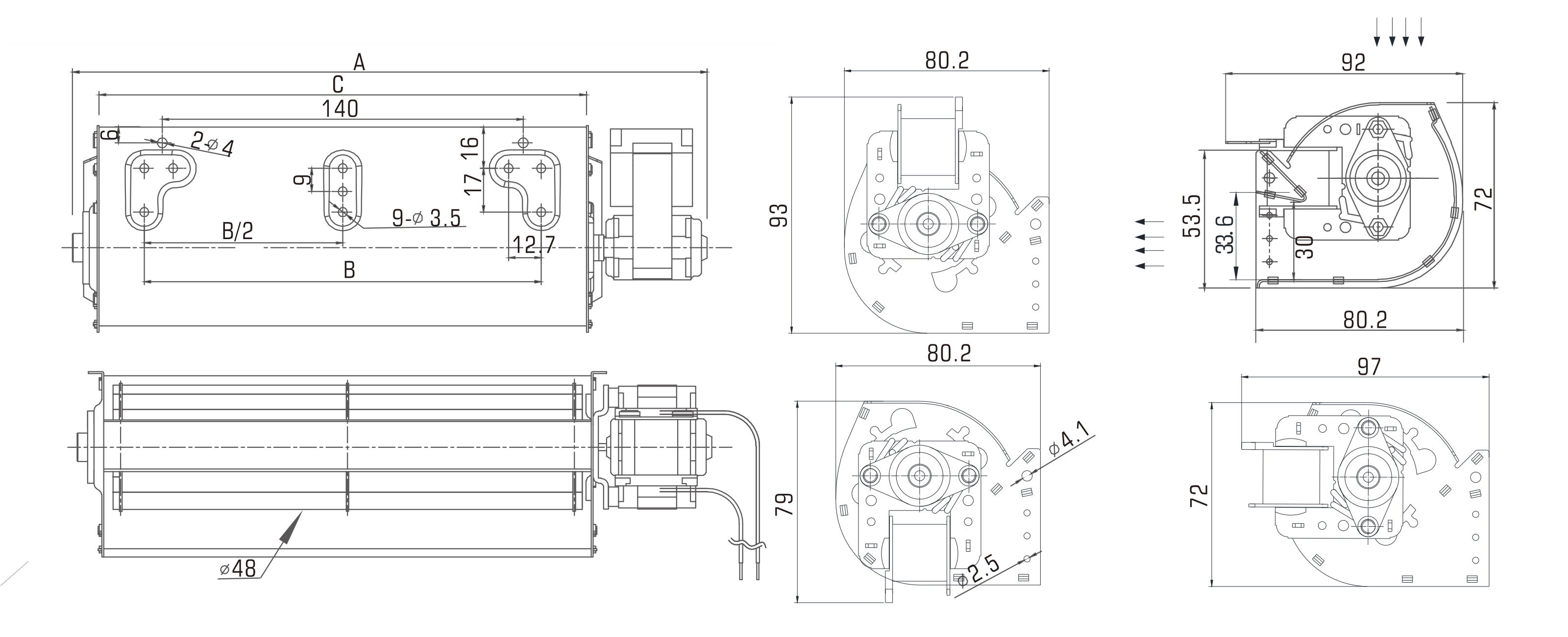

Impeller Diameter: 48mm

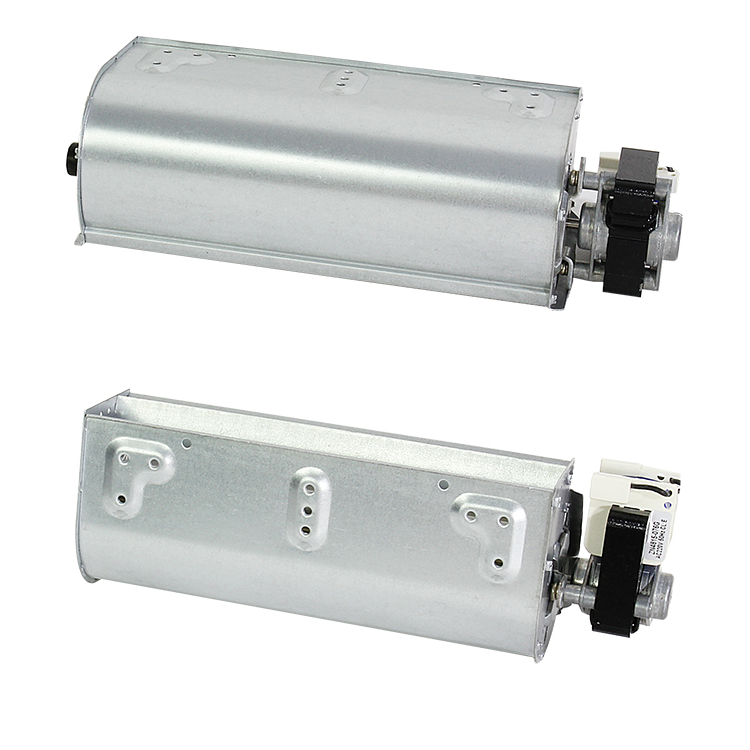

Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy

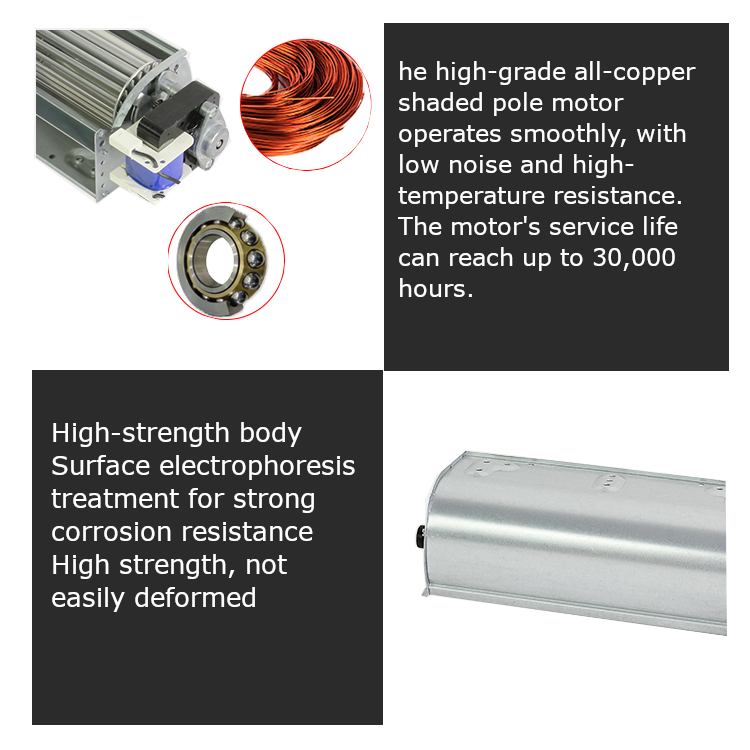

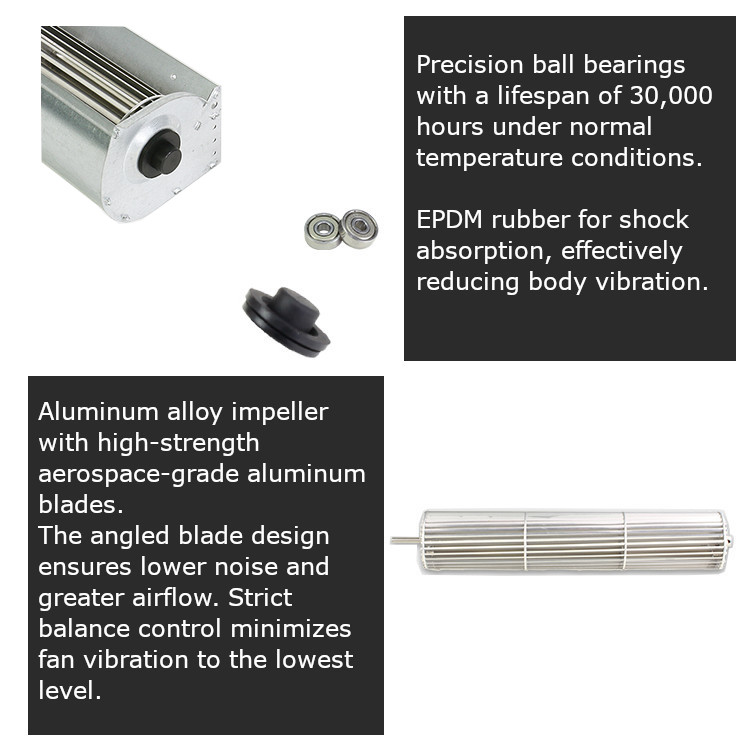

Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C
Applications: Suitable for electric fireplaces, home heaters, air purifiers, and floor-supply air conditioning systems.
Installation Method: Standard installation is horizontal. For vertical installation, please specify when ordering.

Features:

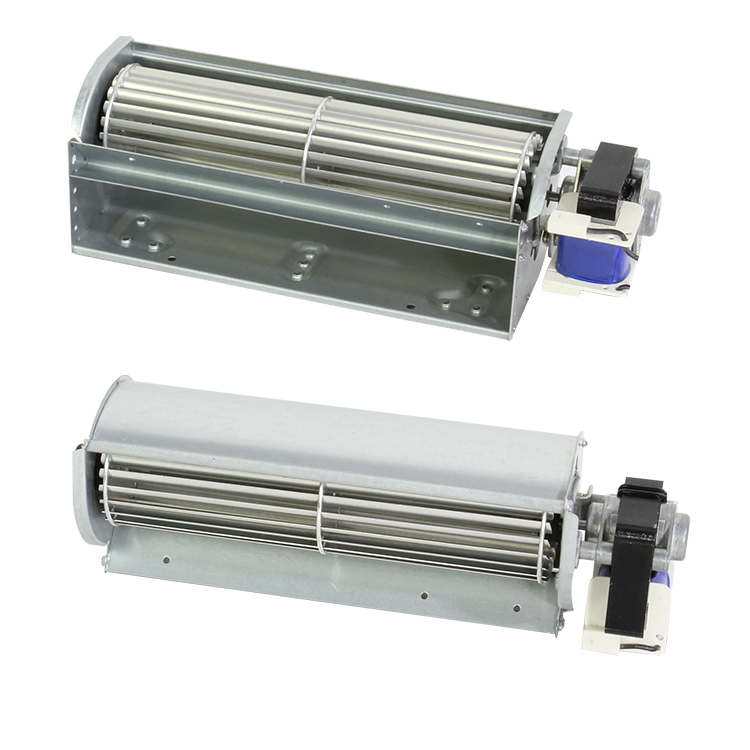

the housing of Cross flow fan was punching by precision tooling, electrophoresis treatment, delicary appearance, stable structure; strict static and dynamic balance test ing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance. according to the customer's requirement, the outlet can be adjusted to 0 , 90 degrees or 180 degrees. The motor available for 110V or 220V
