housing: steel , blade : aluminum
Voltage: AC120/230V (Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 30mm
Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy
Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C

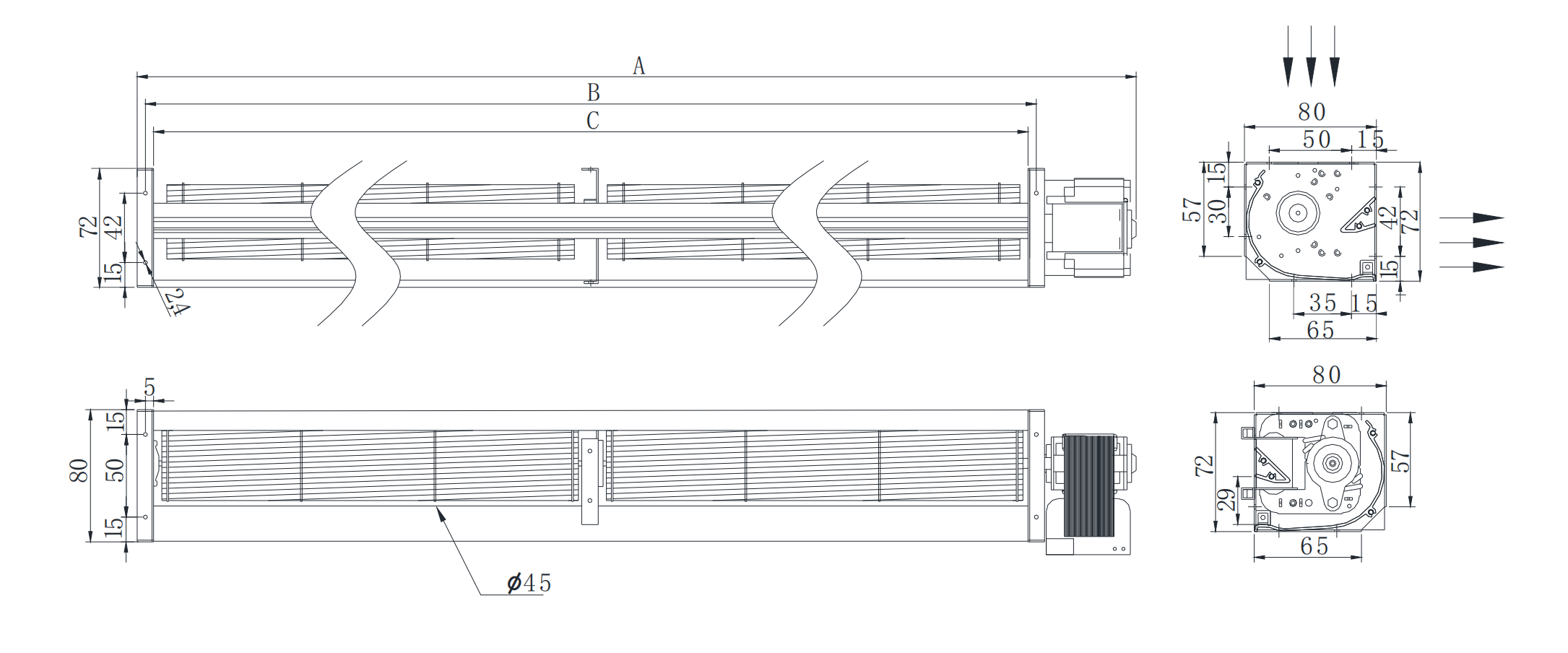

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Input Power(W) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Wind Speed(m/s) | Noise(db) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM45530HB02-LB | A=602 B=540 C=530 | BALL | 220V/50HZ | 39 | 2100 | 374 | 26 | 7.0 | 51 | |
| CM45630HB02-LB | A=702 B=640 C=630 | BALL | 220V/50HZ | 40 | 2000 | 384 | 28 | 6.0 | 50 | |
| CM45700HB02-LB | A=777 B=710 C=700 | BALL | 220V/50HZ | 41 | 1700 | 355 | 24 | 5.0 | 47 | |
| CM45750HB02-LB | A=842 B=760 C=750 | BALL | 220V/50HZ | 55 | 2000 | 495 | 28 | 6.2 | 51 | |
| CM45820HB02-LB | A=912 B=830 C=820 | BALL | 220V/50HZ | 55 | 1800 | 480 | 27 | 5.4 | 50 | |
| CM45870HB02-LB | A=962 B=880 C=870 | BALL | 220V/50HZ | 56 | 1700 | 505 | 27 | 5.4 | 49 |
