housing: steel , blade : aluminum
Voltage: AC120/230V (Customizable based on customer requirements)
Frequency: 50/60 Hz
Speed Control: Multi-speed customization available
Impeller Diameter: 30mm

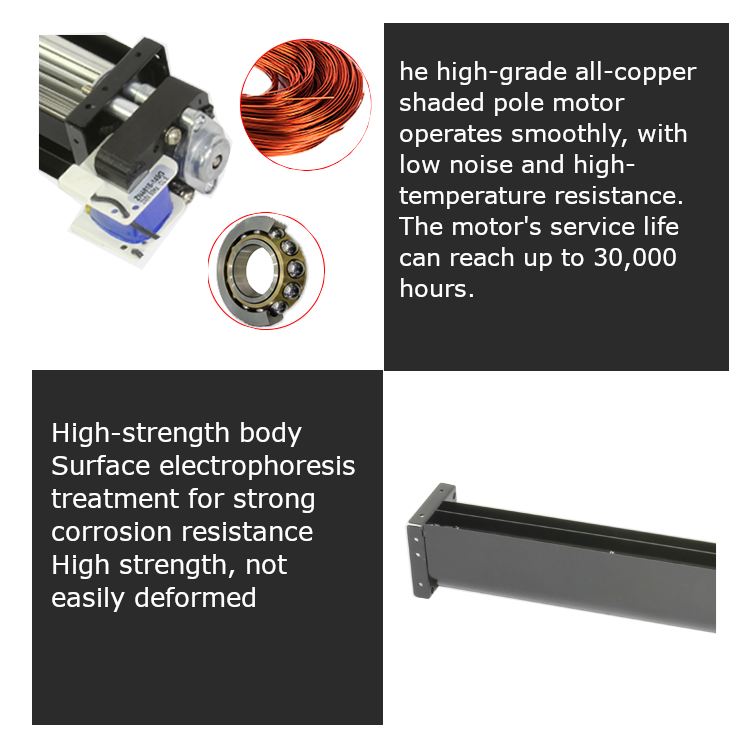

Housing Material: High-strength body with electrophoretic surface treatment
Impeller Material: Aluminum alloy

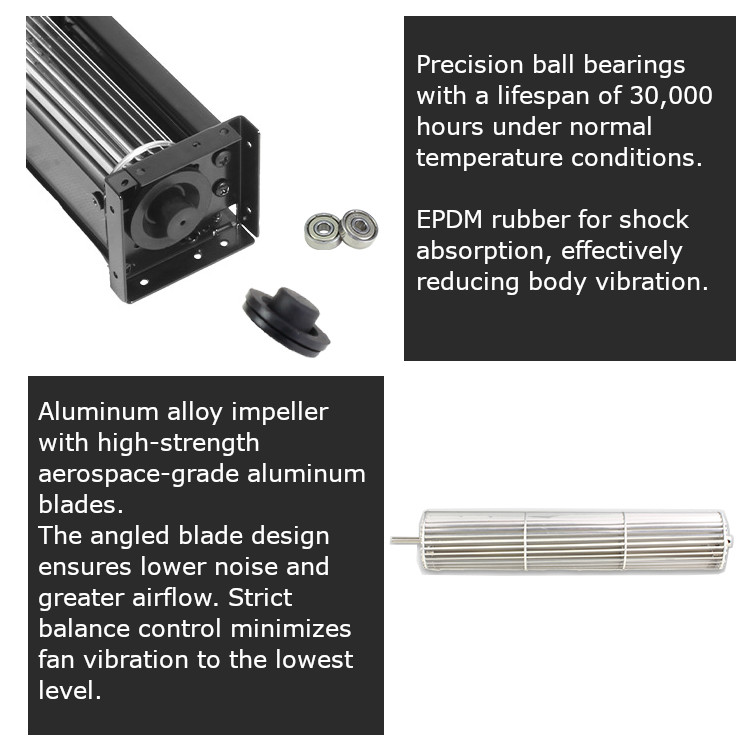

Bearing: Precision ball bearing
Certifications: UL, CE, CCC
Lifespan at Room Temperature: 30,000 hours (ball bearing)
Insulation Class: Class E
Operating Environment: -20 to +70°C

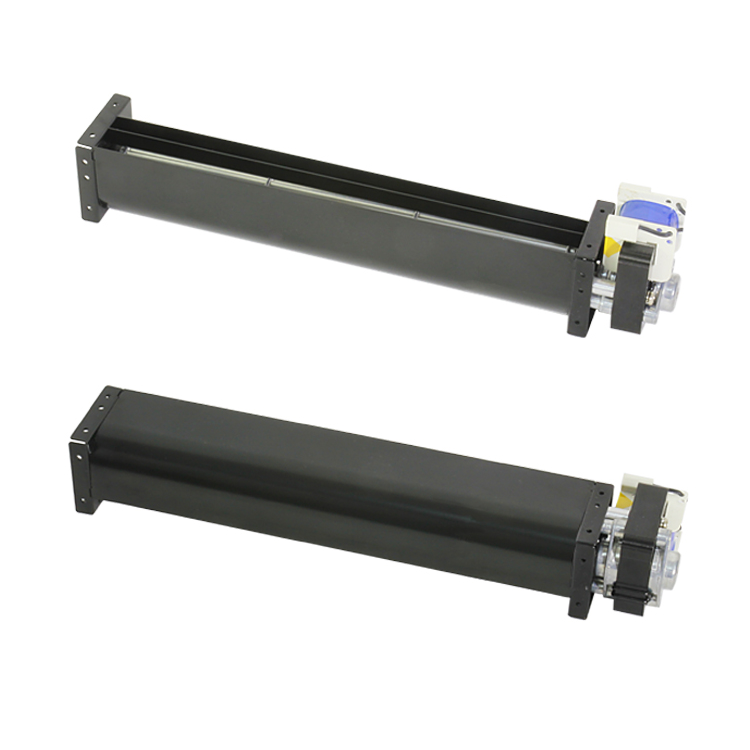

the housing of Cross flow fan was punching by precision tooling, electrophoresis treatment, delicary appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance. according to the customer's requirement, the outlet can be adjusted to 0 ,90 degrees or 180 degrees. The motor is available for 110V or 220V

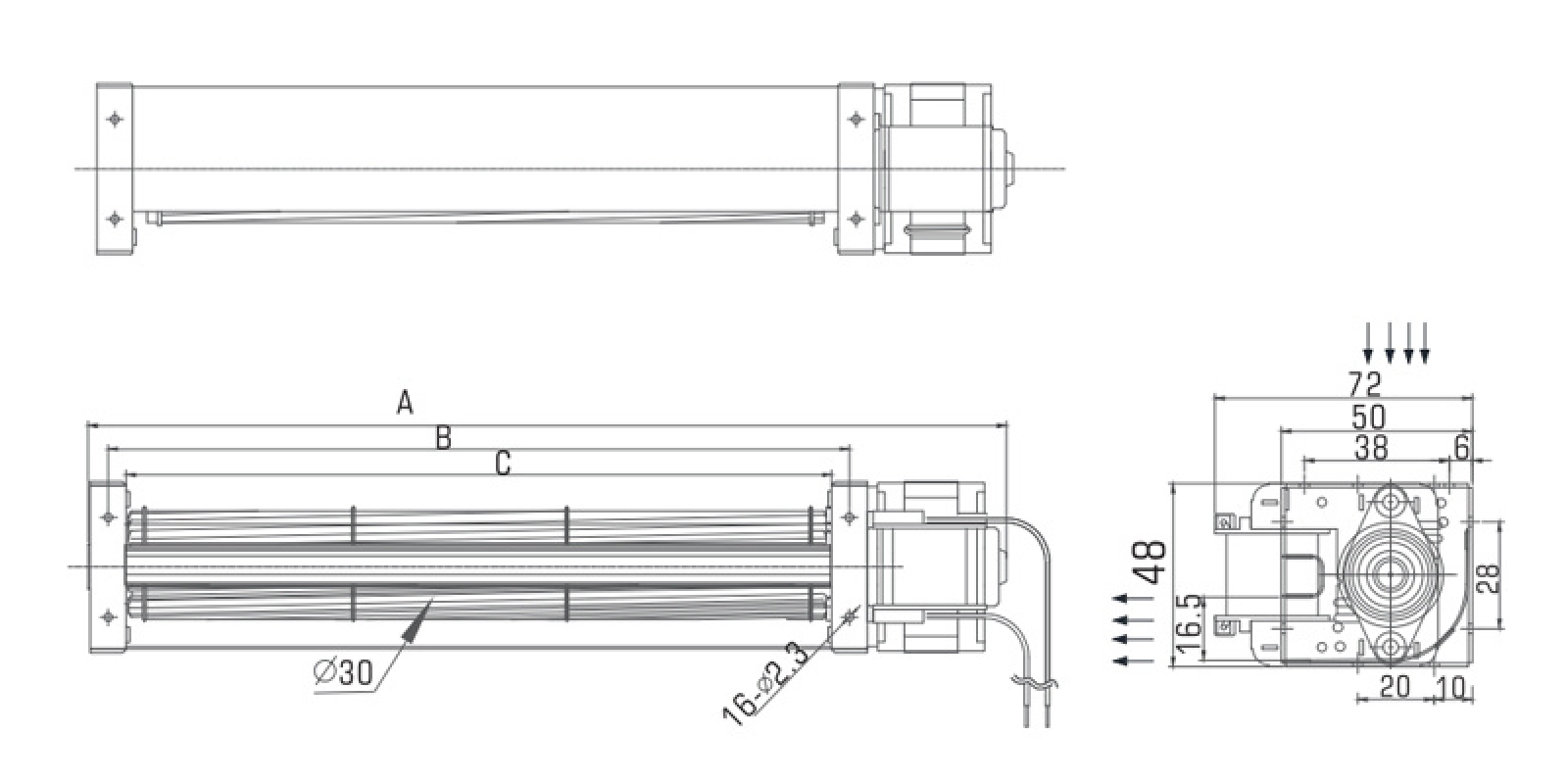

| Model | Size | Bearing Type | Rated Voltage(V) | Current(A) | Speed(rpm) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM30090HB01-PB | A=158 B=108 C=98 | ball bearing | 120V,60Hz | 0.25 | 3300 | 25 | 11 | 31 | 390g | |
| CM30090HB02-PB | A=158 B=108 C=98 | ball bearing | 230V,50Hz | 0.11 | 2700 | 20 | 10 | 30 | 390g | |
| CM30150HB01-PB | A=222 B=170 C=160 | ball bearing | 120V,60Hz | 0.25 | 3200 | 48 | 11 | 32 | 435g | |
| CM30150HB02-PB | A=222 B=170 C=160 | ball bearing | 230V,50Hz | 0.11 | 2700 | 41 | 10 | 32 | 435g | |
| CM30190HB01-PB | A=258 B=208 C=198 | ball bearing | 120V,60Hz | 0.25 | 3100 | 60 | 13 | 32 | 540g | |
| CM30190HB002-PB | 258 B=208 C=198 | ball bearing | 230V,50Hz | 0.11 | 2600 | 50 | 10 | 32 | 540g | |
| CM30250HB01-PB | A=308 B=258 C=248 | ball bearing | 120V,60Hz | 0.25 | 3000 | 76 | 14 | 32 | 600g | |
| CM30250HB02-PB | A=308 B=258 C=248 | ball bearing | 230V,50Hz | 0.12 | 2500 | 62 | 10 | 32 | 600g | |

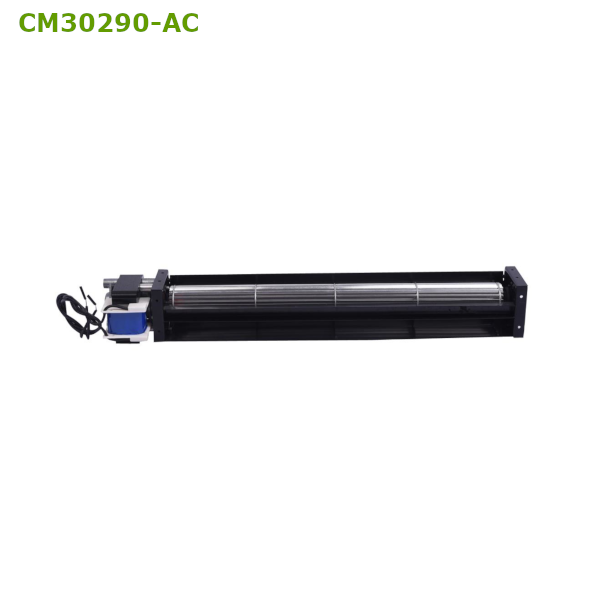

| CM30290HB01-PB | A=360 B=310 C=300 | ball bearing | 120V,60Hz | 0.25 | 2900 | 90 | 15 | 34 | 640g | |
| CM30290HB02-PB | A=360 B=310 C=300 | ball bearing | 230V,50Hz | 0.12 | 2500 | 81 | 13 | 33 | 640g | |
| CM30350HB01-PB | A=412 B=362 C=352 | ball bearing | 120V,60Hz | 0.26 | 2780 | 106 | 15 | 35 | 660g | |
| CM30350HB02-PB | A=412 B=362 C=352 | ball bearing | 230V,50Hz | 0.14 | 2500 | 96 | 14 | 35 | 660g | |
| CM30420HB01-PB | A=480 B=430 C=420 | ball bearing | 120V,60Hz | 0.27 | 2500 | 110 | 15 | 36 | 720g | |
| CM30420HB02-PB | A=480 B=430 C=420 | ball bearing | 230V,50Hz | 0.15 | 2500 | 110 | 15 | 36 | 720g |
