Material:

steel

Optional functions:

Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 65mm
Number of Impeller: 2,3
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

Features:

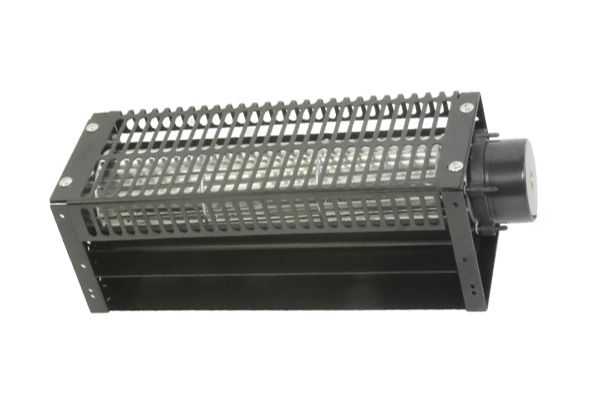

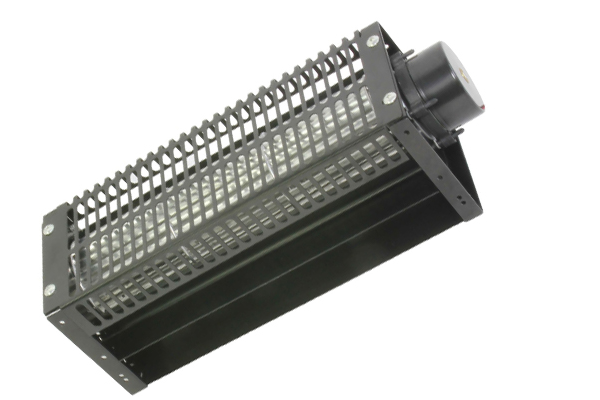

the housing of COOLCOM DC Tangential fan was punching by precision tooling, electrophoresis treatment, delicacy appearance, dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume. cross flow fans produce a laminar airflow and allow for horizontal or vertical mounting. are frequently used in diverse applications ranging from HVAC, electronic systems, heater ,green-house, Radiator, air curtain ,food preparation equipment.....
