steel
tach output, PWM speed control, 0-10V voltage control

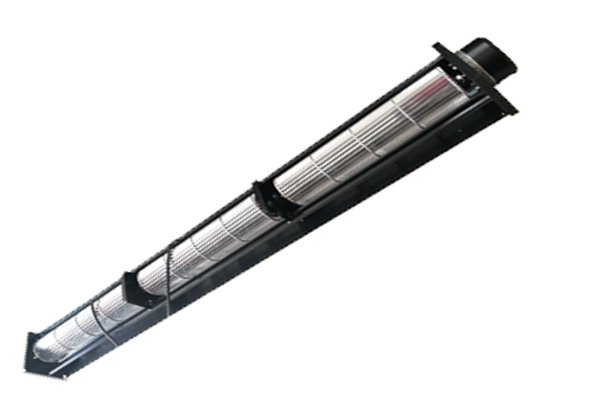

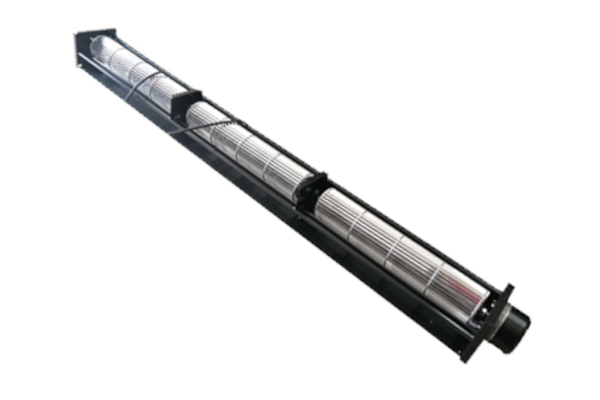

the housing of COOLCOM DC Cross flow fan(Tangential fan) was punching by precision tooling, electrophoresis treatment, delicacy appearance, strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume. cross flow fans produce a laminar airflow and allow for horizontal or vertical mounting. are frequently used in diverse applications ranging from HVAC, electronic systems, heater ,green-house, Radiator, air curtain ,food preparation equipment.....

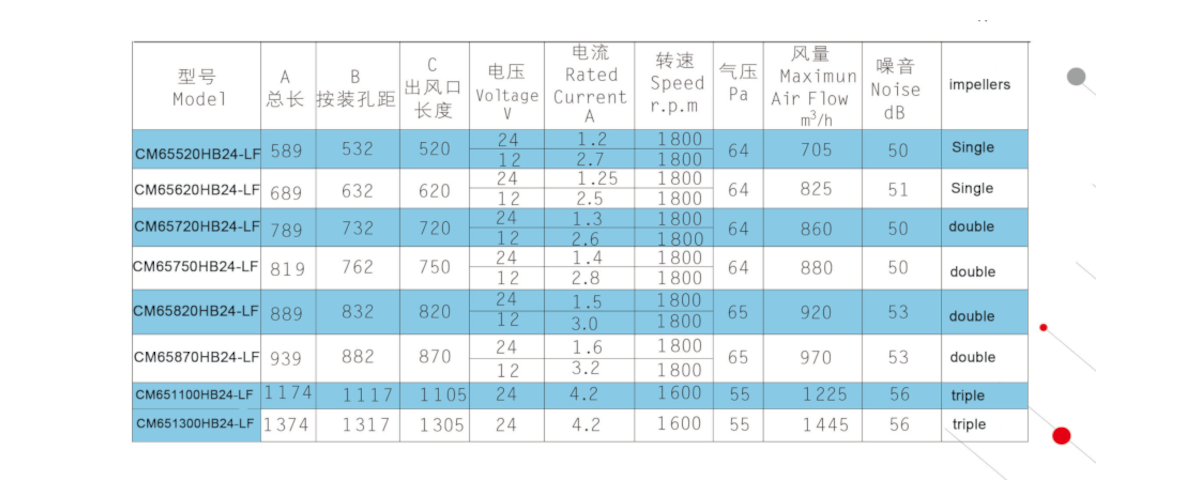

| Model | impeller Size(mm) | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM65520HB24/12-LF | 65*520 | NMB ball | 24V/12V | 1.2/2.7A | 1800RPM | 705m3/h | 64Pa | 50dB | 1.8kg/single blower | |
| CM65620HB24/12-LF | 65*620 | NMB ball | 24V/12V | 1.25/2.5A | 1800RPM | 825m3/h | 64Pa | 51dB | 2.0kg/single blower | |
| CM65720HB24/12-LF | 65*720 | NMB ball | 24V/12V | 1.3/2.6A | 1800RPM | 860m3/h | 64Pa | 50dB | 2.1kg/double blower | |
| CM65750HB24/12-LF | 65*750 | NMB ball | 24V/12V | 1.4/2.8A | 1800RPM | 880m3/h | 64Pa | 50dB | 2.2kg/double blower | |
| CM65820HB24/12-LF | 65*820 | NMB ball | 24V/12V | 1.5/3.0A | 1800RPM | 920m3/h | 65Pa | 53dB | 2.3kg/double blower | |
| CM65870HB24/12-LF | 65*870 | NMB ball | 24V/12V | 1.6/3.2A | 1800RPM | 970m3/h | 65Pa | 53dB | 2.5kg/double blower | |
| CM651100HB24-LF | 65*1100 | NMB ball | 24V | 4.2A | 1600RPM | 1225m3/h | 55Pa | 56dB | 2.8kg/triple blower | |
| CM651300HB24-LF | 65*1300 | NMB ball | 24V | 4.2A | 1600RPM | 1445m3/h | 55Pa | 56dB | 3kg/triple blower |
