steel,aluminum,Φ50mm impeller diameter

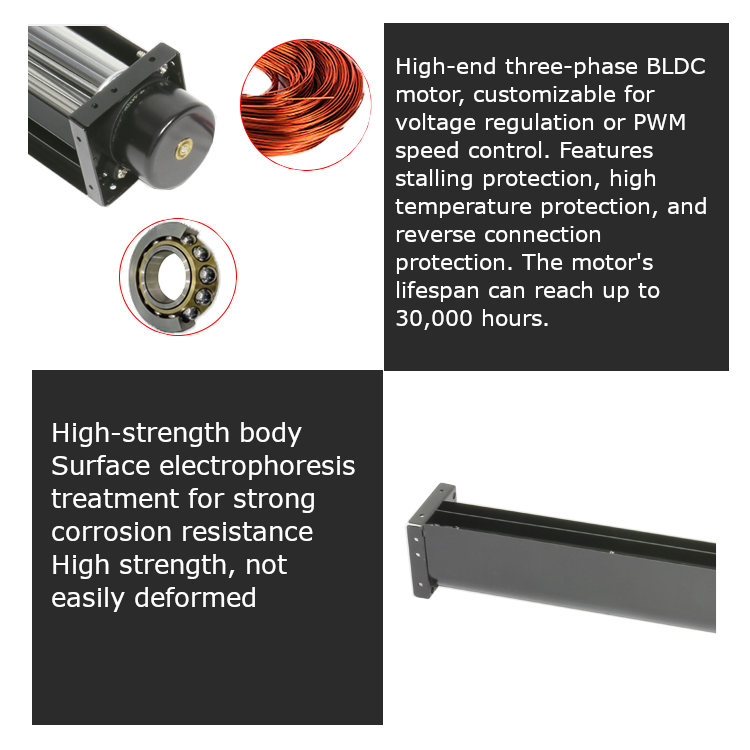

Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 40mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C
coolcom cross-flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM50090HB12-PA | A=155 B=110 C=100 | BALL*3 | 12 | 0.16 | 2400 | 50 | 35 | 38 | - | |
| CM50090HB24-PA | A=155 B=110 C=100 | BALL*3 | 24 | 0.1 | 2400 | 50 | 35 | 39 | - | |
| CM50150HB12-PA | A=215 B=170 C=160 | BALL*3 | 12 | 0.26 | 2400 | 90 | 39 | 39 | - | |
| CM50150HB24-PA | A=215 B=170 C=160 | BALL*3 | 24 | 0.13 | 2400 | 90 | 39 | 39 | - | |
| CM50190HB12-PA | A=256 B=210 C=200 | BALL*3 | 12 | 0.3 | 2400 | 120 | 42 | 41 | - | |
| CM50190HB24-PA | A=256 B=210 C=200 | BALL*3 | 24 | 0.17 | 2400 | 120 | 42 | 41 | - | |
| CM50250HB12-PA | A=302 B=260 C=250 | BALL*3 | 12 | 0.33 | 2400 | 150 | 42 | 42 | - | |
| CM50250HB24-PA | A=302 B=260 C=250 | BALL*3 | 24 | 0.18 | 2400 | 150 | 42 | 42 | - | |
| CM50290HB12-PA | A=340 B=210 C=300 | BALL*3 | 12 | 0.4 | 2400 | 180 | 42 | 43 | - | |
| CM50290HB24-PA | A=340 B=210 C=300 | BALL*3 | 24 | 0.2 | 2400 | 180 | 42 | 43 | - | |
| CM50360HB12-PA | A=410 B=370 C=360 | BALL*3 | 12 | 0.44 | 2400 | 210 | 42 | 44 | - | |
| CM50350HB24-PA | A=410 B=370 C=360 | BALL*3 | 24 | 0.22 | 2400 | 210 | 42 | 44 | - | |
| CM50420HB12-PA | A=475 B=430 C=420 | BALL*3 | 12 | 0.51 | 2400 | 250 | 42 | 46 | - | |
| CM50420HB24-PA | A=475 B=430 C=420 | BALL*3 | 24 | 0.25 | 2400 | 250 | 42 | 46 | - |
