Metal aluminum Sheet
Motor type : EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 1400rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

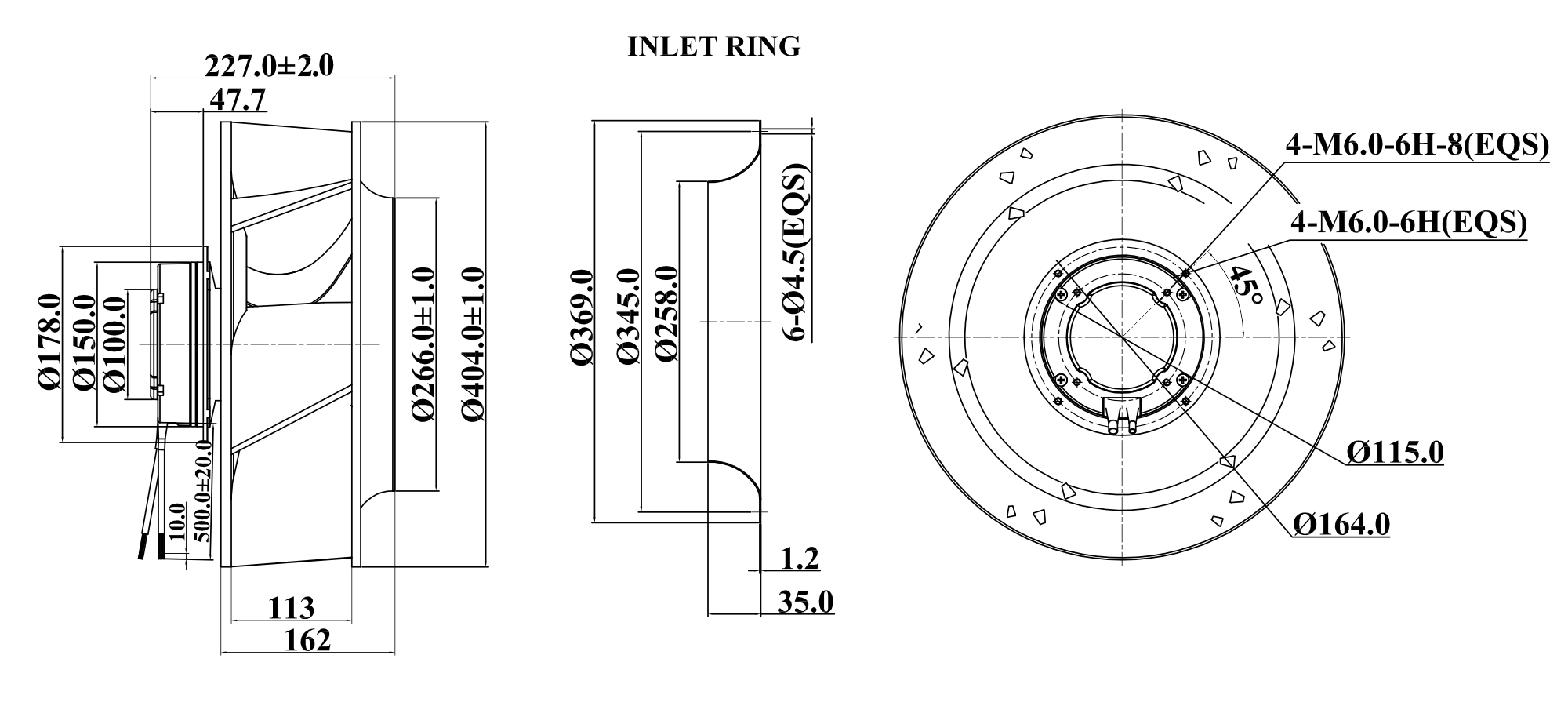

Diameter size is 404mm, impeller height 113mm, total height with motor base is 227mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (6 blades).

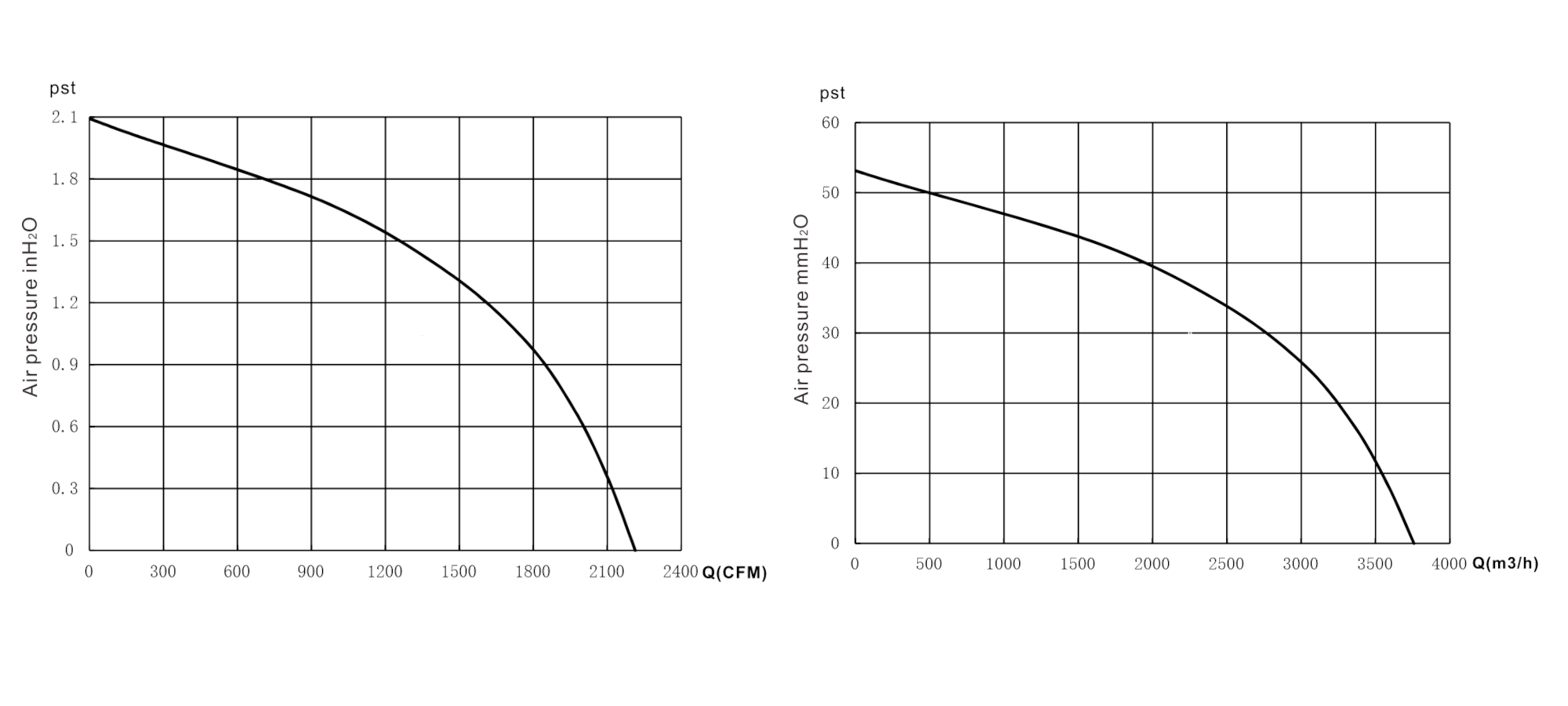

| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(db) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM400162CH01B-EC | 115V,60Hz | 92V-132V | 5.0 | 390 | 1400 | 2214 | 53.2 | 72 | 6 | |
| CM400162CH01B-EC | 230V,50Hz | 184V-265V | 2.5 | 390 | 1400 | 2214 | 53.2 | 72 | 6 |
