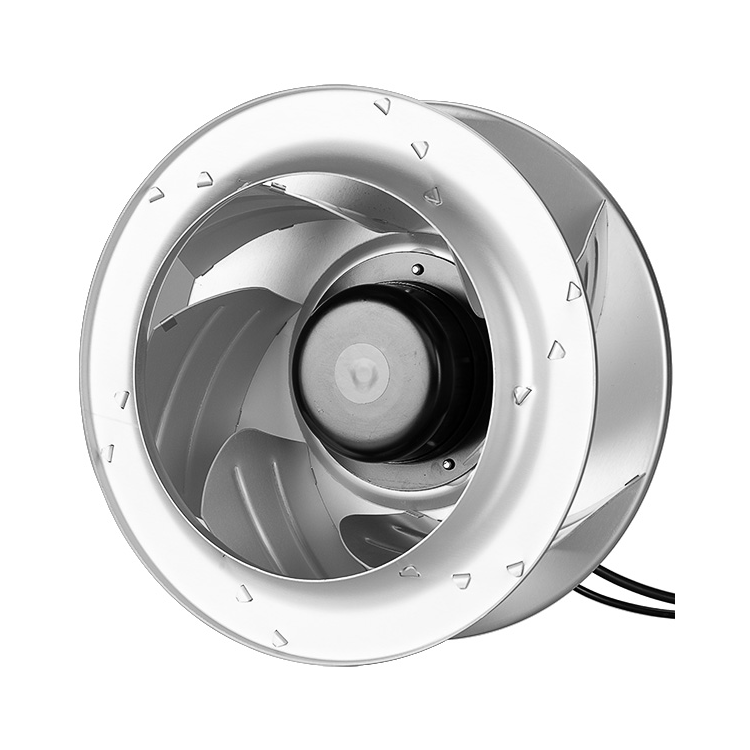

Metal aluminum Sheet
Motor type : 102mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 2350rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

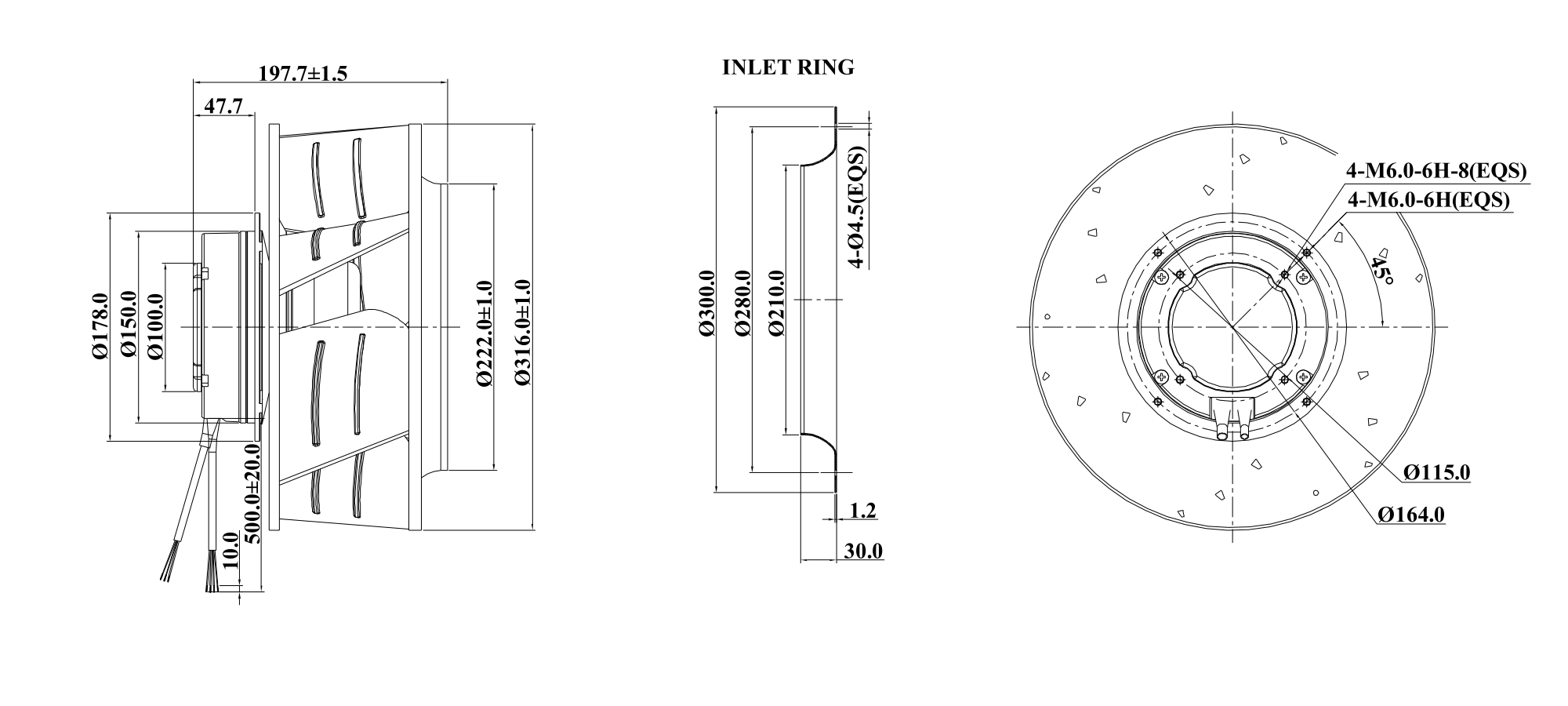

Diameter size is 316mm, impeller height 101mm, total height with motor base is 197.7mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (6 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(db) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM310140CH03B-EC | 115V,60Hz | 92V-132V | 6.6 | 440 | 2350 | 1802.6 | 86.79 | 72 | 4.6 | |
| CM310140CH04B-EC | 230V,50Hz | 184V-265V | 3.3 | 440 | 2350 | 1802.6 | 86.79 | 72 | 4.6 | |
| CM310140CH05B-EC | 230V,50Hz | 184V-265V | 4.1 | 550 | 2600 | 1971.8 | 103.08 | 76 | 5.5 |
