Metal aluminum Sheet
Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 1700rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

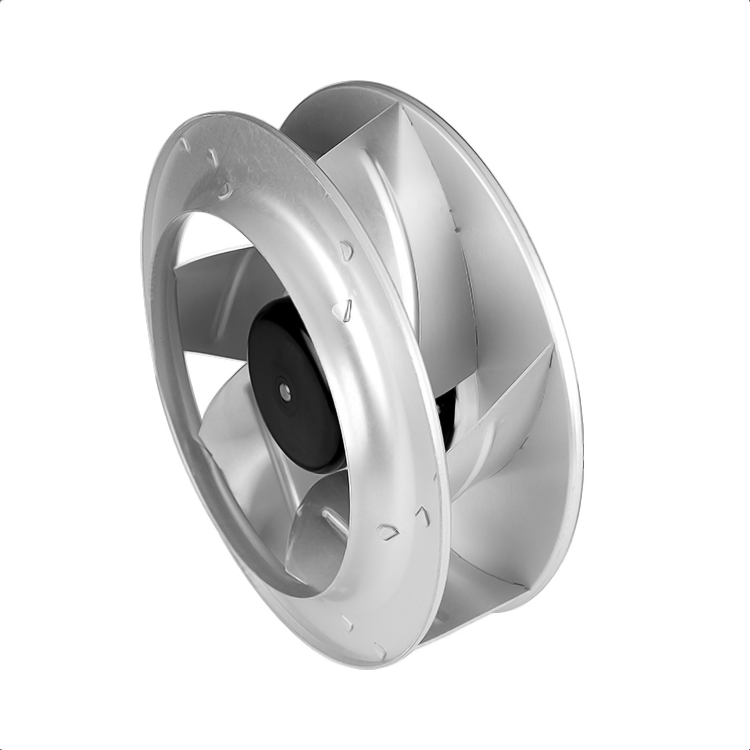

Diameter size is 316mm, impeller height 71mm, total height with motor base is 159.5mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (6 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM310108CH01B-EC | 115V,60Hz | 92V~138V | 2.3 | 140.0 | 1700 | 1118.6 | 52.7 | 64 | 3.1 | |
| CM310108CH02B-EC | 230,50Hz | 184V~276V | 1.15 | 140.0 | 1700 | 1118.4 | 52.7 | 64 | 3.1 |
