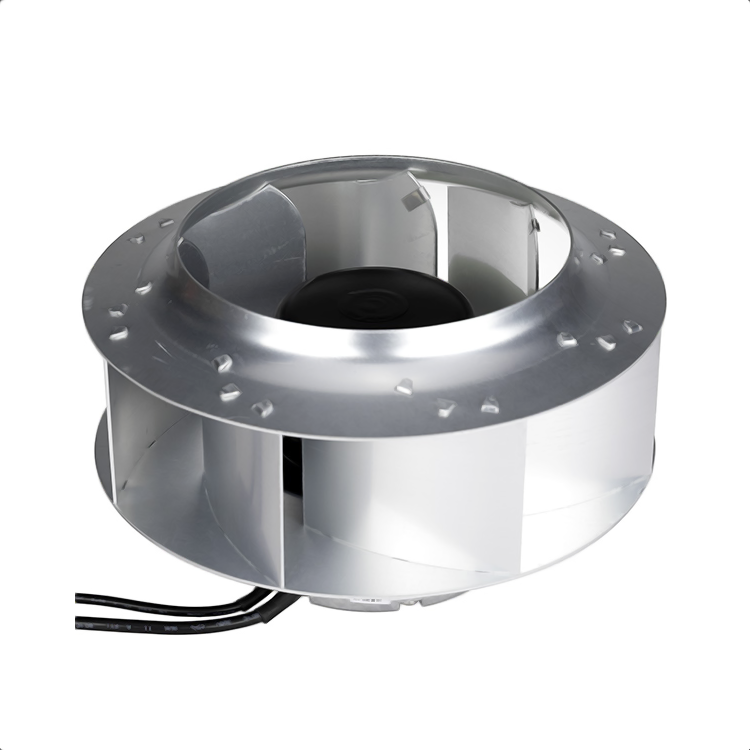

Metal aluminum Sheet
Motor type : 102mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 3000rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

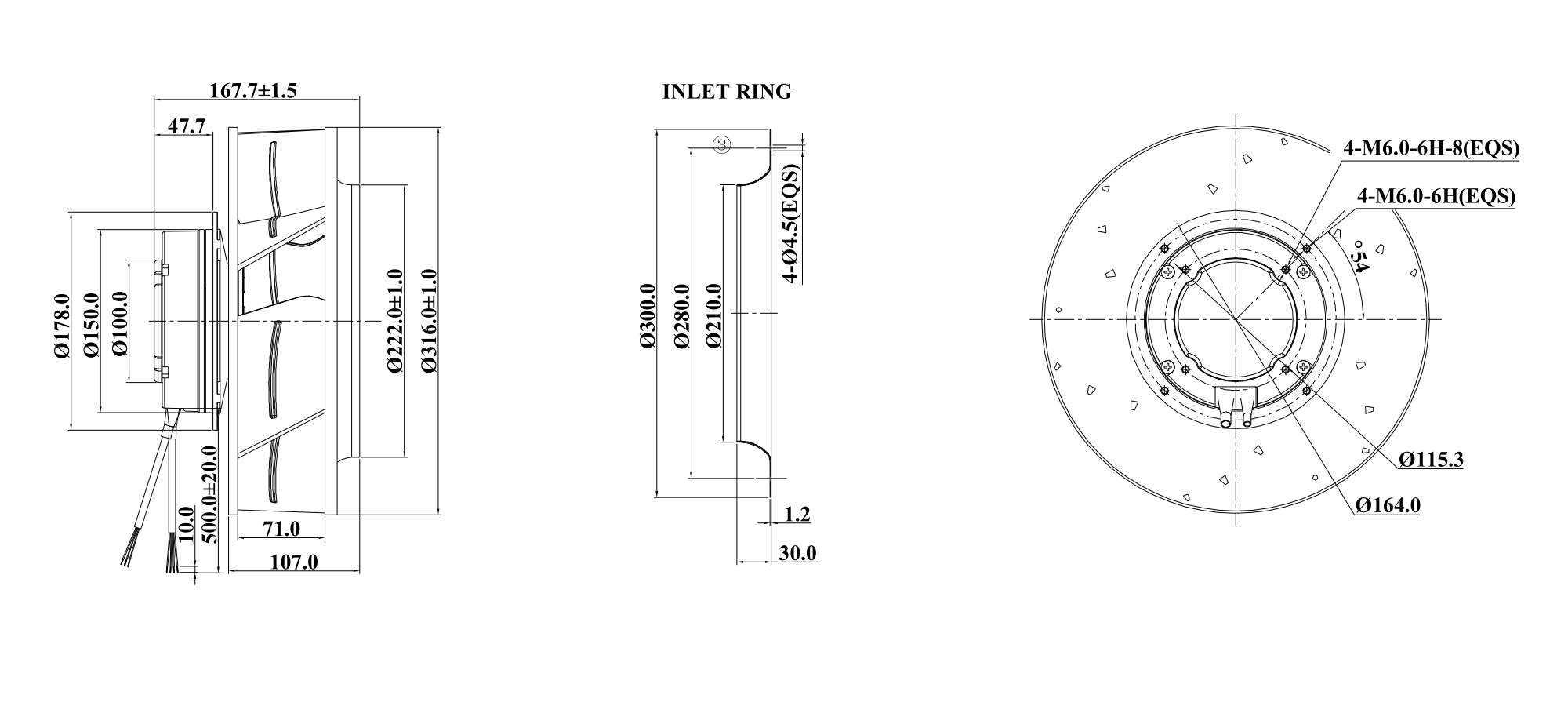

Diameter size is 316mm, impeller height 71mm, total height with motor base is 167.7mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (6 blades).
| Model | Rated Voltage | Operating Voltage | Operating Voltage Rated Current(A)V) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM310108CH01B-EC | 115V,60Hz | 92V~138V | 5.0 | 340 | 2350 | 1555 | 84.69 | 71 | 4.3 | |
| CM310108CH02B-EC | 230V,50Hz | 184V~276V | 2.5 | 340 | 2350 | 1555 | 84.69 | 71 | 4.3 | |
| CM310108CH03B-EC | 115V,60Hz | 92V~138V | 6.5 | 480 | 2600 | 1696 | 95.6 | 74 | 5.2 | |
| CM310108CH04B-EC | 230V,50Hz | 184V~276V | 5.0 | 380 | 3000 | 1930 | 101.9 | 79 | 5.2 |
