Metal Galvanized Sheet

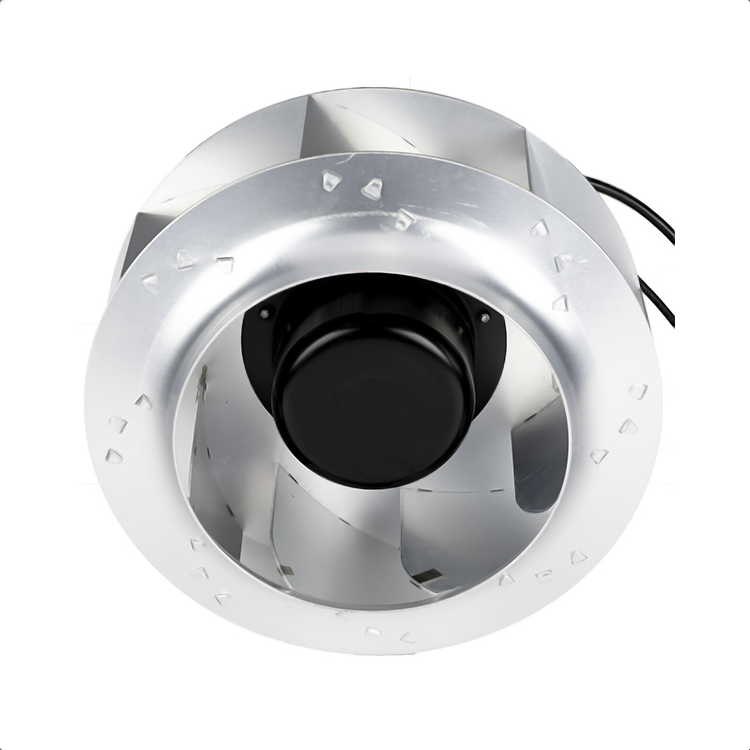

Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 1900rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.
Diameter size is 281mm, impeller height 83mm, total height with motor base is 164.5mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (8 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(Pa) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM280112CH01B-EC | 115V,60Hz | 92V~138V | 2.0 | 130 | 1900 | 1060.2 | 48.14 | 69 | 3.8 | |
| CM280112CH02B-EC | 230,50Hz | 184V~276V | 1.0 | 130 | 1900 | 1060.2 | 48.14 | 69 | 3.8 |
