Metal sheet
Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 2900rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

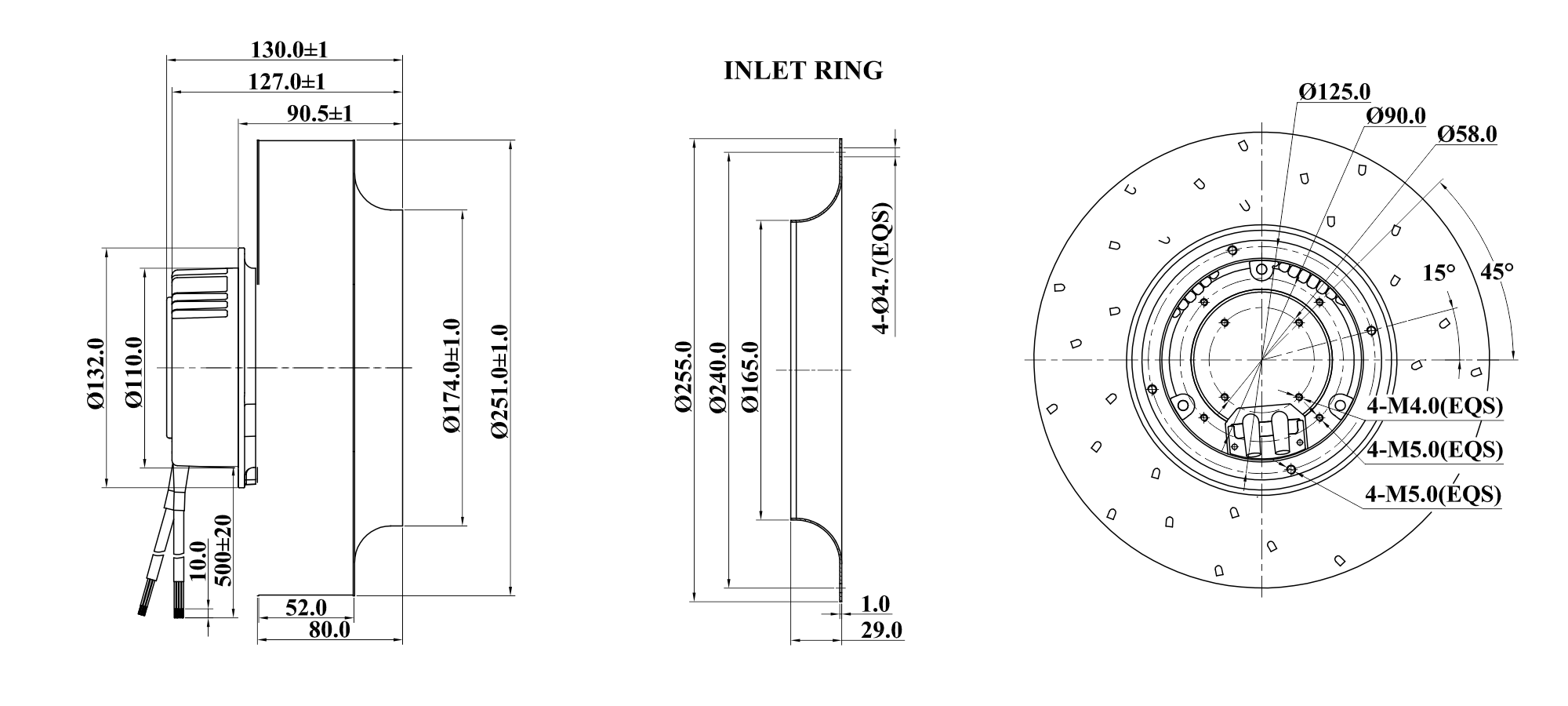

Diameter size is 250mm, impeller height 52mm, total height with motor base is 130mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (11 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM250080CH01B-EC | 115V,60Hz | 92V~138V | 3.2 | 201 | 2900 | 868.4 | 77.13 | 75 | 2.7 | |
| CM250080CH02B-EC | 230V,50Hz | 184V~276V | 1.6 | 201 | 2900 | 868.4 | 77.13 | 75 | 2.7 |
