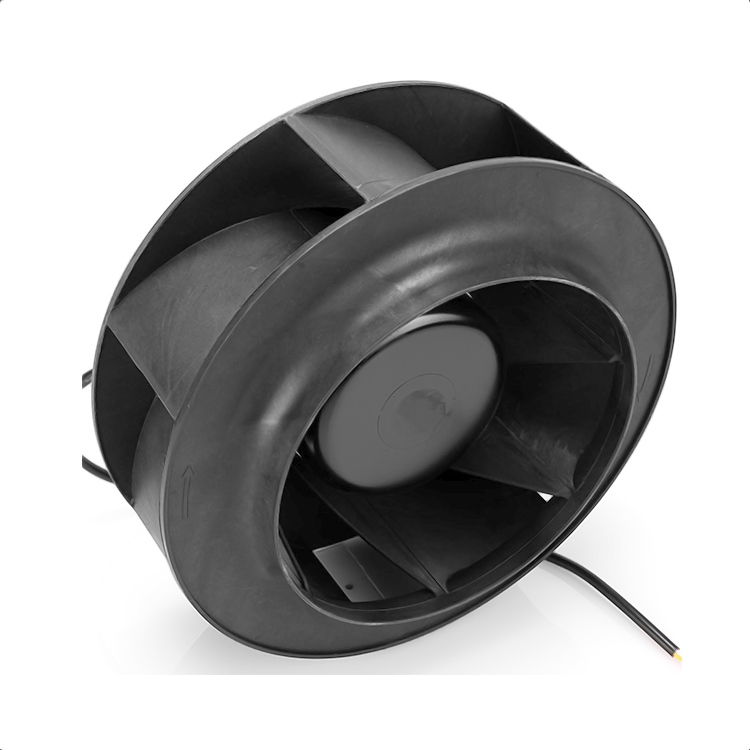

Plastic PP impeller
Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 3300rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.
Diameter size is 225mm, impeller height 63mm, total height with motor base is 143.5mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (7 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM1225090CH03B-EC | 115V,60Hz | 92V-138V | 3.2 | 200 | 3300 | 840.8 | 75.5 | 73 | 2.2 | |
| CM1225090CH04B-EC | 230,50Hz | 184-276 | 1.56 | 200 | 3300 | 840.8 | 75.5 | 73 | 2.2 |
