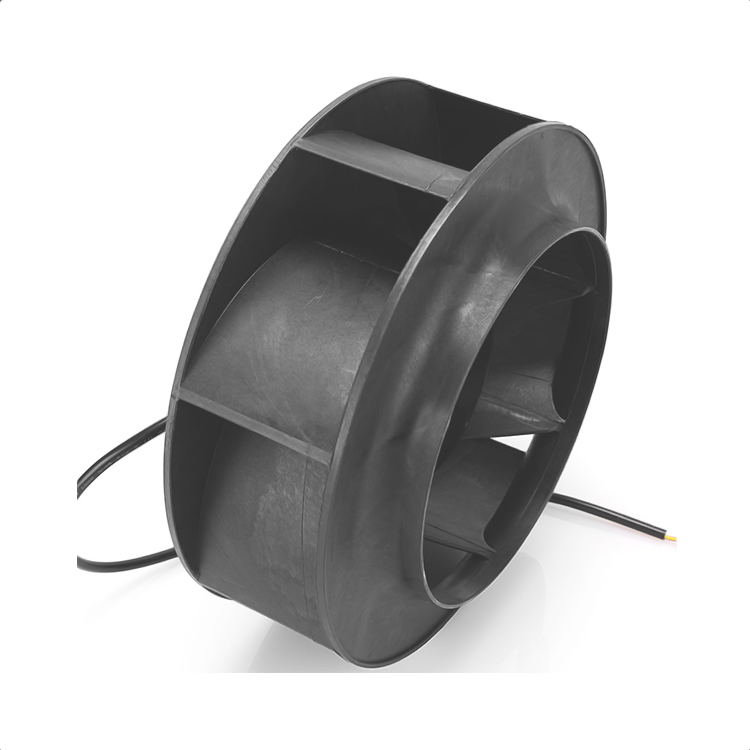

Plastic PP impeller
Motor type : 72mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 2500rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

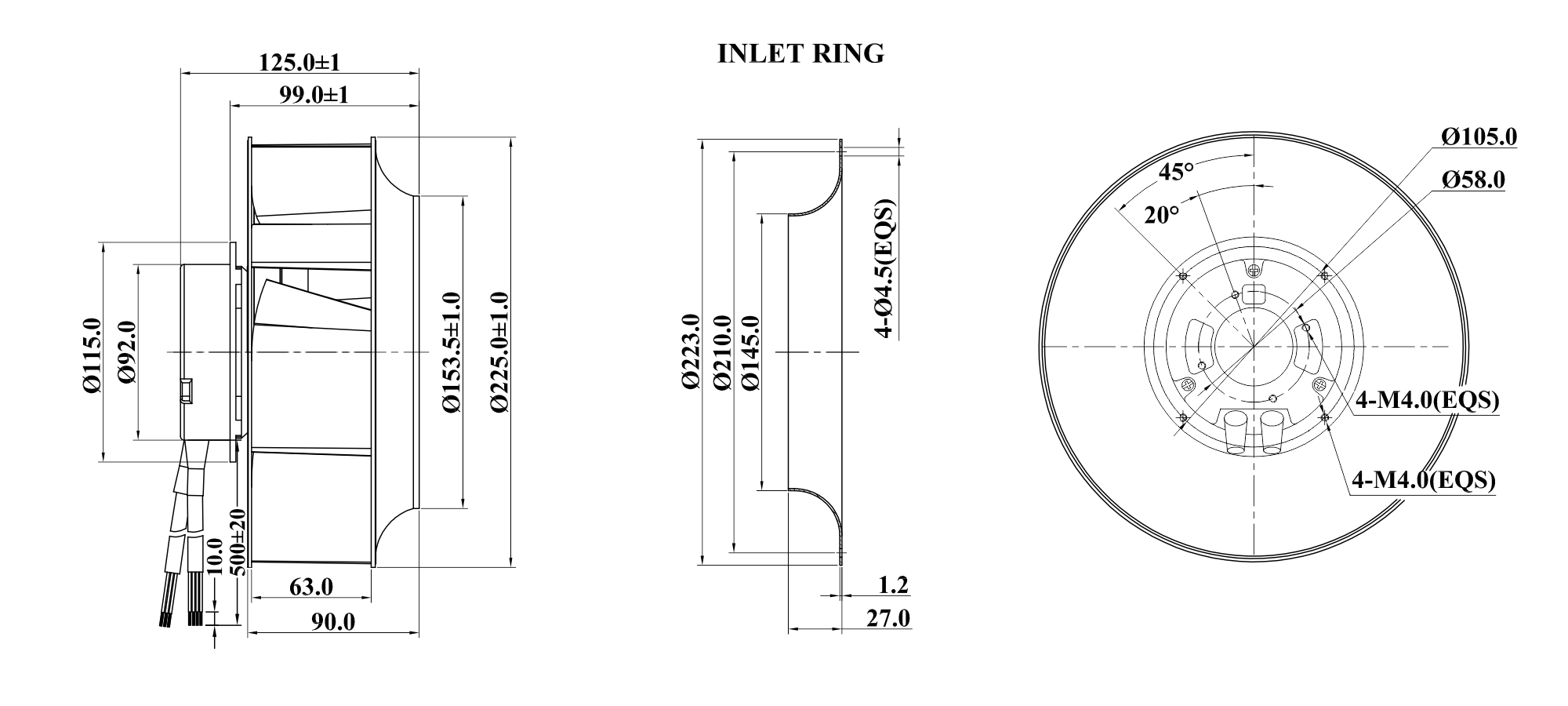

Diameter size is 225mm, impeller height 63mm, total height with motor base is 125mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (7 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm)) | Pressure(mmH20)) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM1225090CH01B-EC | 115V,60Hz | 92V~132V | 1.50 | 85 | 2500 | 636 | 43.3 | 67 | 1.5 | |
| CM1225090CH02B-EC | 230V,50Hz | 184V~265V | 0.75 | 85 | 2500 | 636 | 43.3 | 67 | 1.5 |
