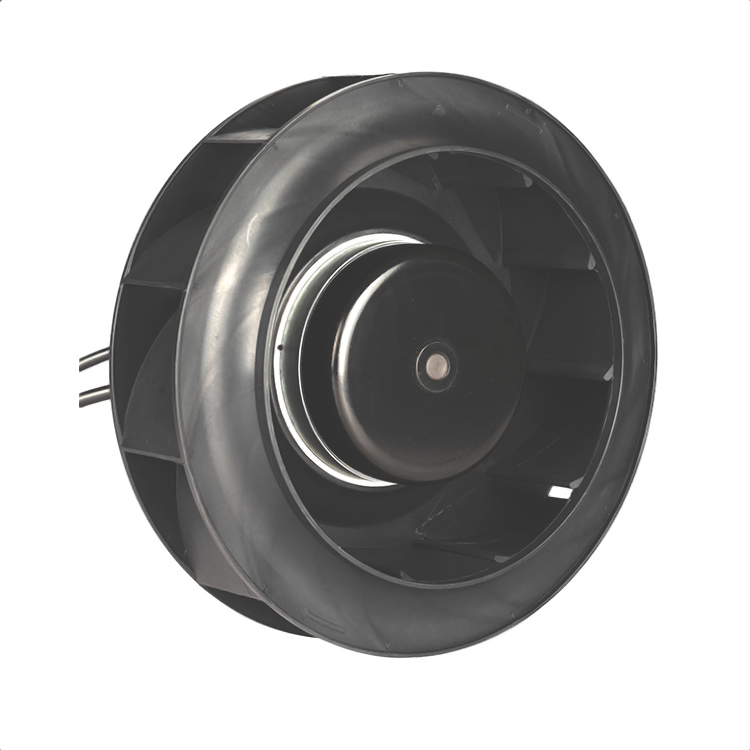

Plastic PP impeller
Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 3200rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.
Diameter size is 220mm, impeller height 45mm, total height with motor base is 116mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (11 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM220063CH01B-EC | 115V,60Hz | 92V~132V | 1.5 | 95 | 2800 | 488 | 45.5 | 65 | 3.2 | |
| CM220063CH02B-EC | 220V,50Hz | 184V~265V | 1.0 | 115 | 3200 | 564 | 59.4 | 70 | 3.2 |
