Plastic PP impeller
Motor type : 72mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 3500rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

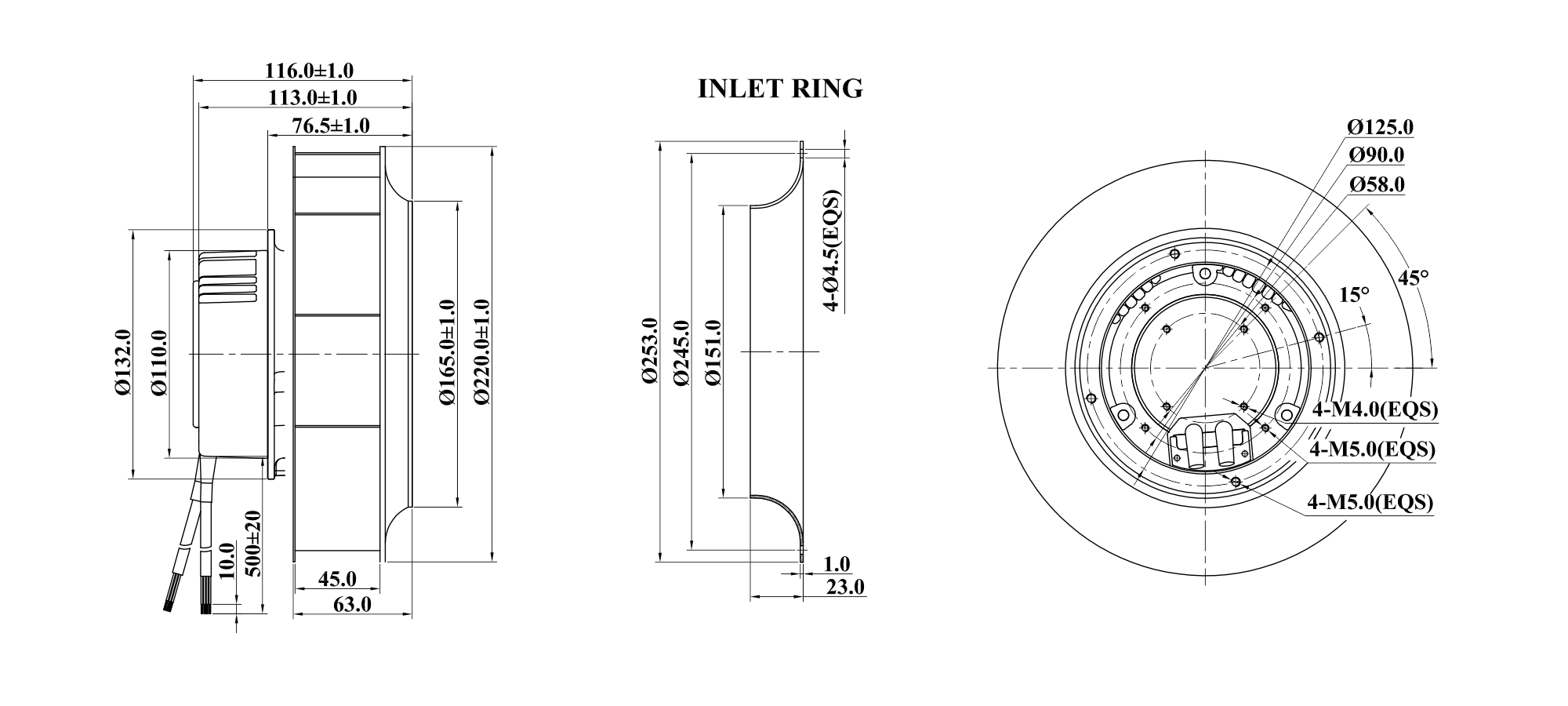

Diameter size is 220mm, impeller height 45mm, total height with motor base is 97mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (7 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM220063CH01B-EC | 115V,60Hz | 92V~138V | 2.70 | 175 | 3500 | 627.8 | 75.2 | 76 | 1.8 | |
| CM220063CH02B-EC | 230V,50Hz | 184V~276V | 1.40 | 175 | 3500 | 627.8 | 75.2 | 76 | 1.8 |
