Plastic PP impeller
Motor type : 92mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 4000rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
The model work voltage is AC 115V / 230V.

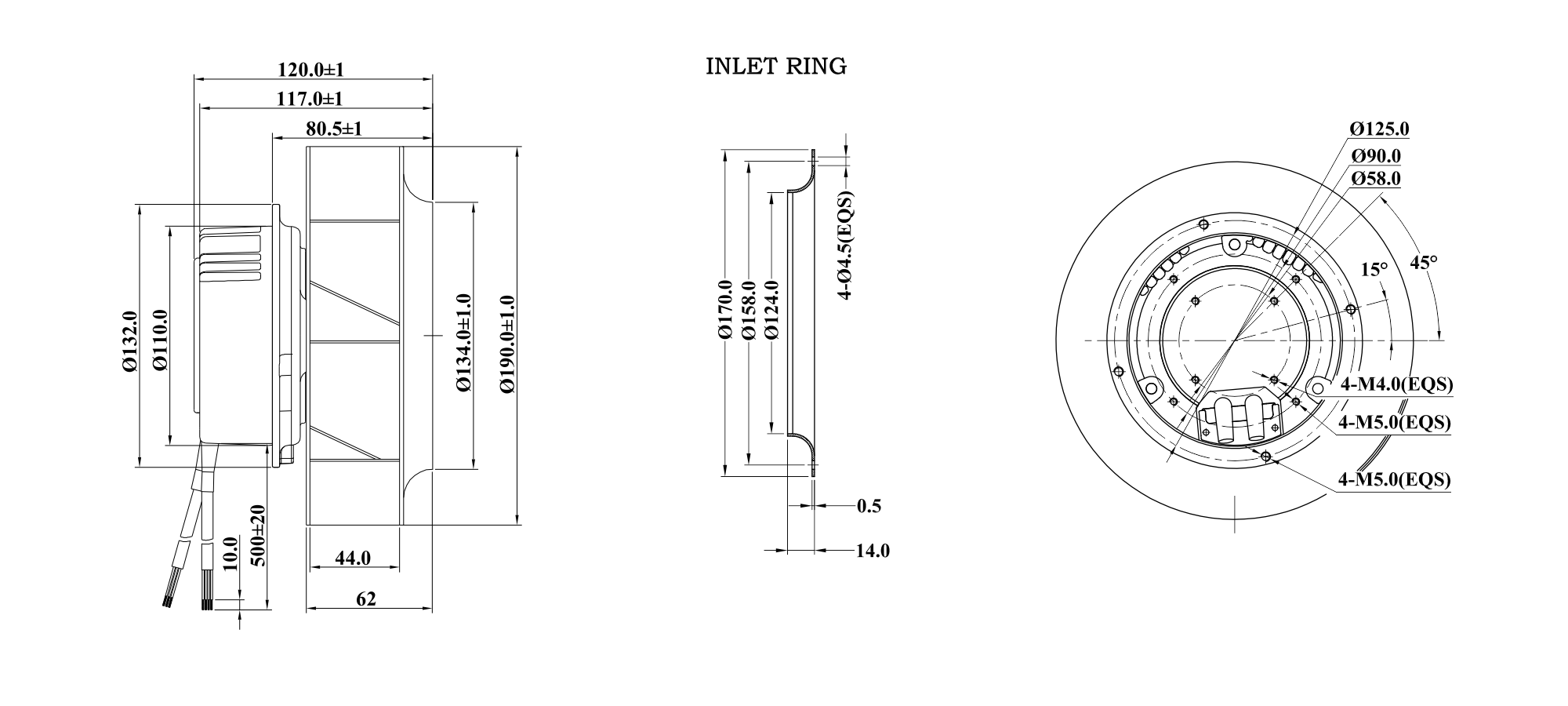

Diameter size is 190mm, impeller height 44mm, total height with motor base is 95mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (7 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM190064CH03B-EC | 115V | 92V-132V,60Hz | 2.5 | 170 | 4000 | 486 | 73 | 75 | 1.64 | |
| CM190064CH04B-EC | 230V | 184V-265V.50Hz | 1.33 | 170 | 4000 | 486 | 73 | 75 | 1.64 |
