Plastic PP impeller
Motor type : 72mm EC brushless external rotor motor
Optional voltage : AC 115v/230v
Speed Control : 0-10V / PWM control
Speed : 3500rpm,Customizable according to customer requirements
Certifications: UL, CE, E306337
Insulation Class: Class B
Operating Temperature:: -20 - 60 °C
The model work voltage is AC 115V / 230V.

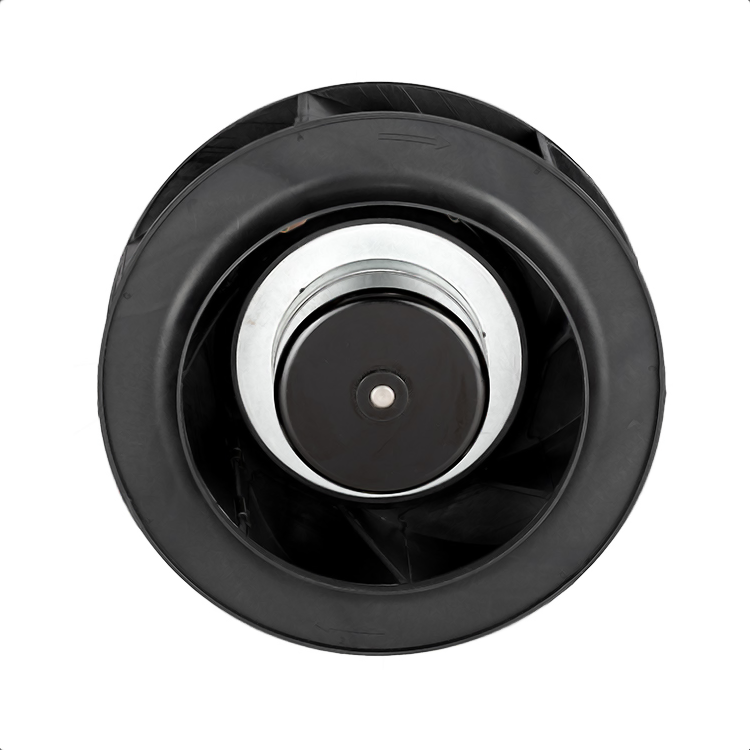

Diameter size is 190mm, impeller height 44mm, total height with motor base is 95mm.
Support 0-10 VDC or PWM speed control.
50,000 hours continuous operating at 40℃.
One piece wheel (7 blades).
| Model | Rated Voltage | Operating Voltage | Rated Current(A) | Rated Power(w) | Rated Speed(rpm) | Air Flow(cfm) | Pressure(mmH20) | Noise(dB) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM190062CH01B-EC | 115V | 92V-132V,60Hz | 1.60 | 1.60 | 3500 | 436.1 | 58.7 | 71.5 | 1.3 | |
| CM190062CH02B-EC | 230V | 184V-256V,50Hz | 0.80 | 97.0 | 3500 | 436.1 | 58.7 | 71.5 | 1.3 |
