steel,aluminum,Φ60mm impeller diameter
Motor type : 50 Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 60mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

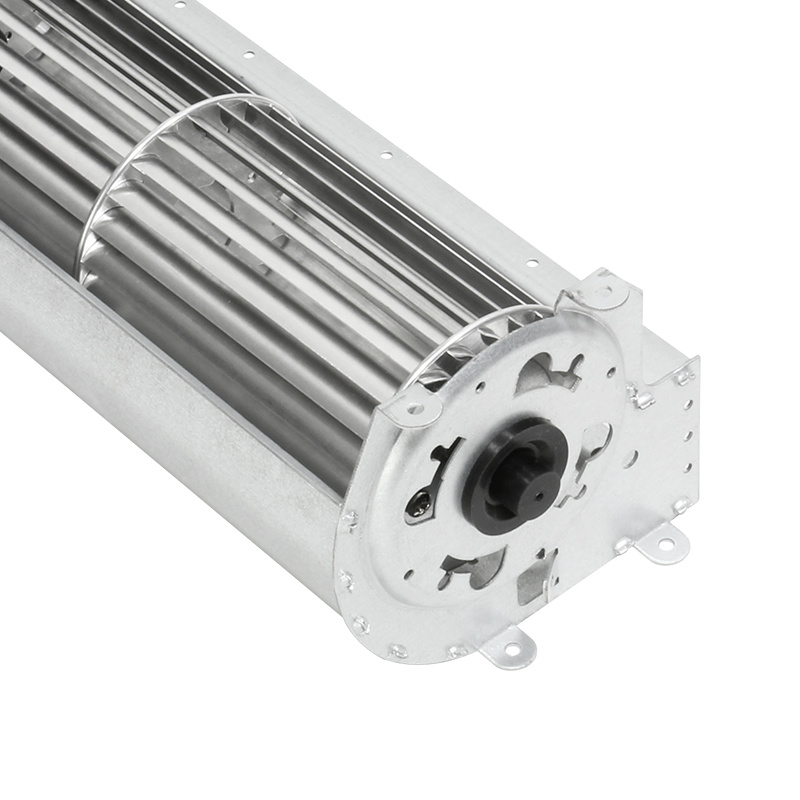

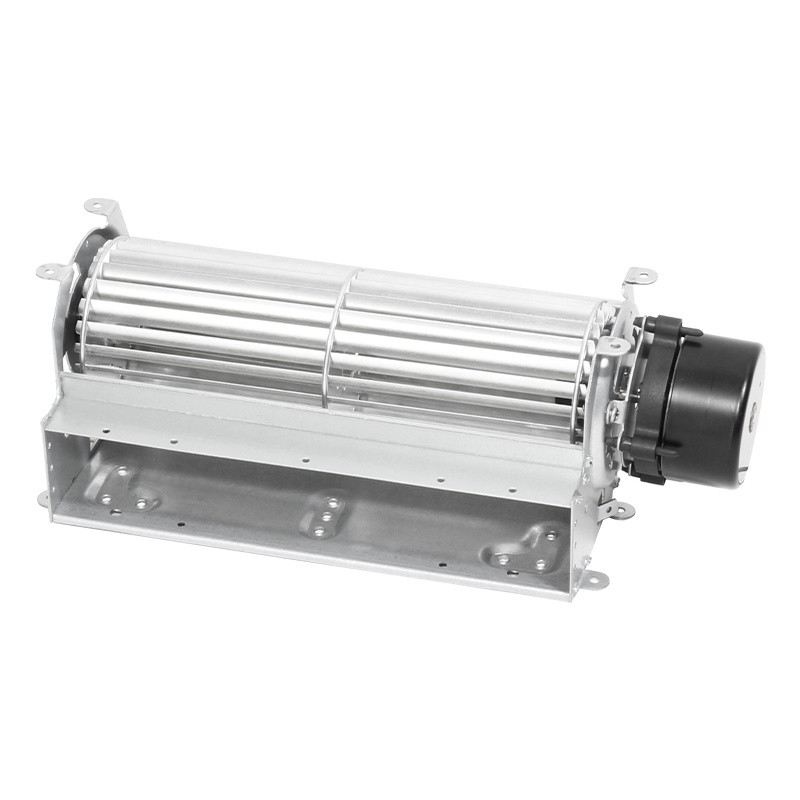

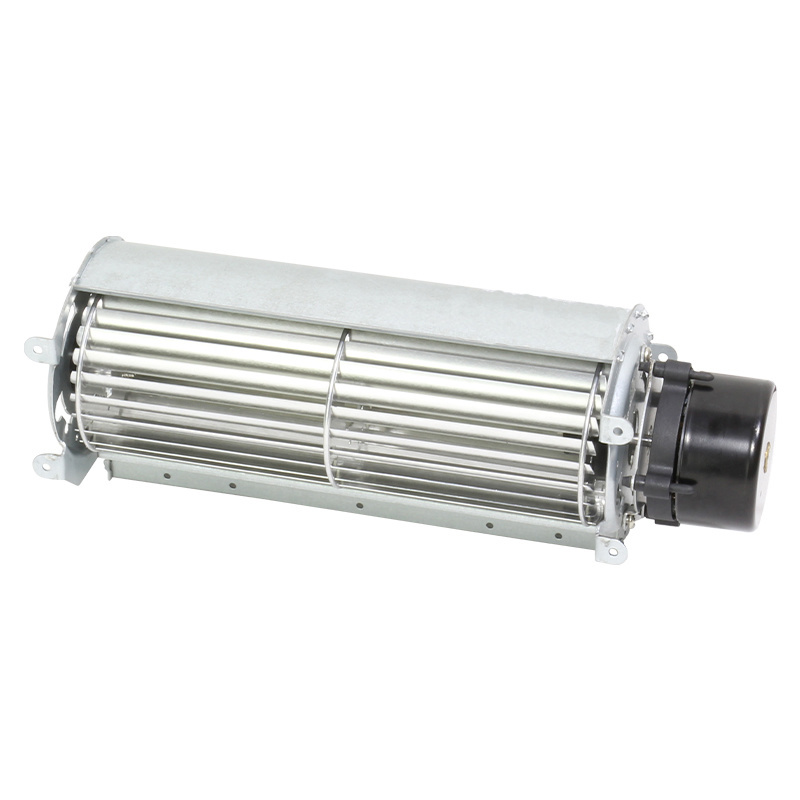

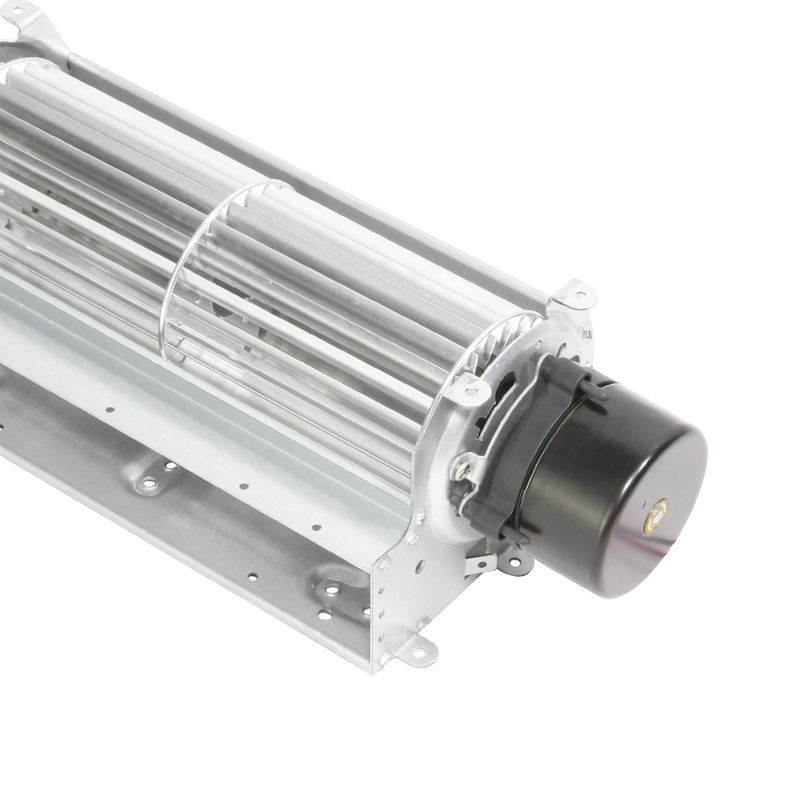

coolcom cross-flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

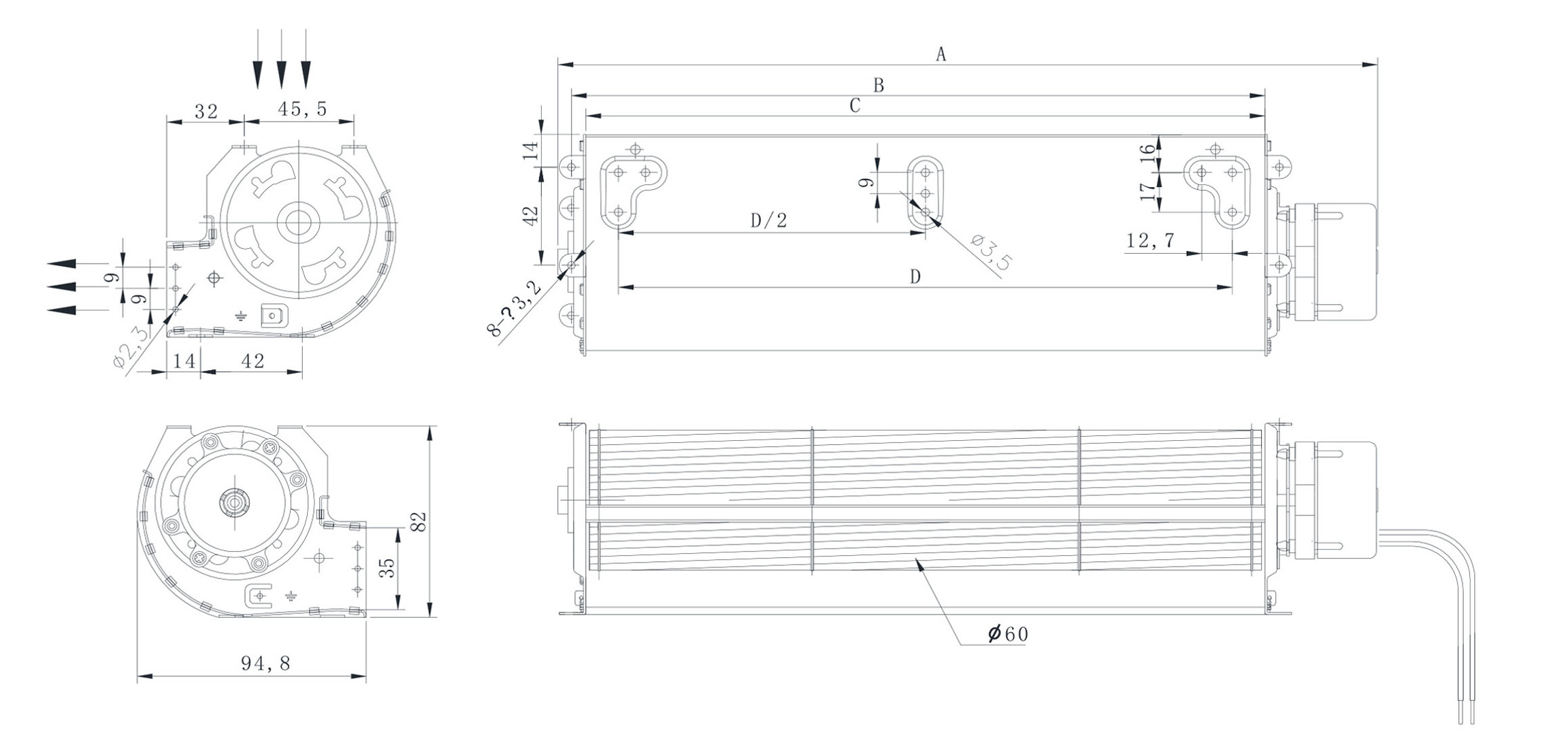

| Model | Size | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60120HB12-PA | A=182 B=134 C=123 | BALL*3 | 12 | 0.57 | 2400 | 105 | 50 | 40 | ||
| CM60120HB24-PA | A=182 B=134 C=123 | BALL*3 | 24 | 0.28 | 2400 | 105 | 50 | 40 | ||
| CM60180HB12-PA | A=240 B=193 C=181 | BALL*3 | 12 | 0.93 | 2400 | 170 | 54 | 40 | ||
| CM60180HB24-PA | A=240 B=193 C=181 | BALL*3 | 24 | 0.44 | 2400 | 170 | 54 | 40 | ||
| CM60240HB12-PA | A=301 B=265 C=242 | BALL*3 | 12 | 1.15 | 2400 | 210 | 51 | 42 | ||
| CM60240HB24-PA | A=301 B=265 C=242 | BALL*3 | 24 | 0.60 | 2400 | 210 | 51 | 42 | ||
| CM60300HB12-PA | A=363 B=315 C=304 | BALL*3 | 12 | 1.24 | 2200 | 250 | 48 | 42 | ||
| CM60300HB24-PA | A=363 B=315 C=304 | BALL*3 | 24 | 0.69 | 2200 | 250 | 48 | 42 | ||
| CM60350HB12-PA | A=402 B=365 C=353 | BALL*3 | 12 | 1.32 | 2000 | 290 | 48 | 43 | ||
| CM60350HB24-PA | A=402 B=365 C=353 | BALL*3 | 24 | 0.74 | 2000 | 290 | 48 | 43 | ||
| CM60420HB12-PA | A=477 B=430 C=418 | BALL*3 | 12 | 1.39 | 1900 | 220 | 45 | 40 | ||
| CM60420HB24-PA | A=477 B=430 C=418 | BALL*3 | 24 | 0.76 | 1900 | 220 | 45 | 40 |
