housing: steel , blade : aluminum
RD,tach output, PWM speed control, temperature control ,locked-rotor,polarity,waterproof

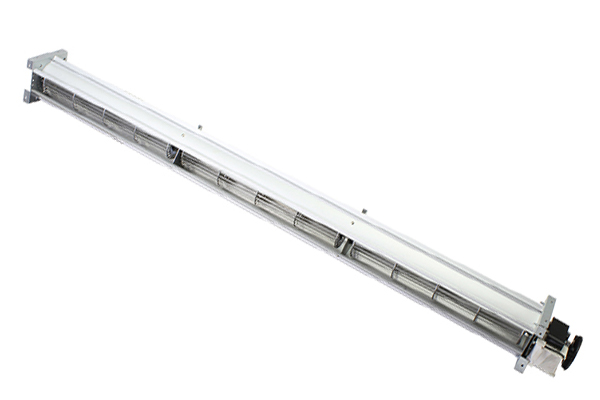

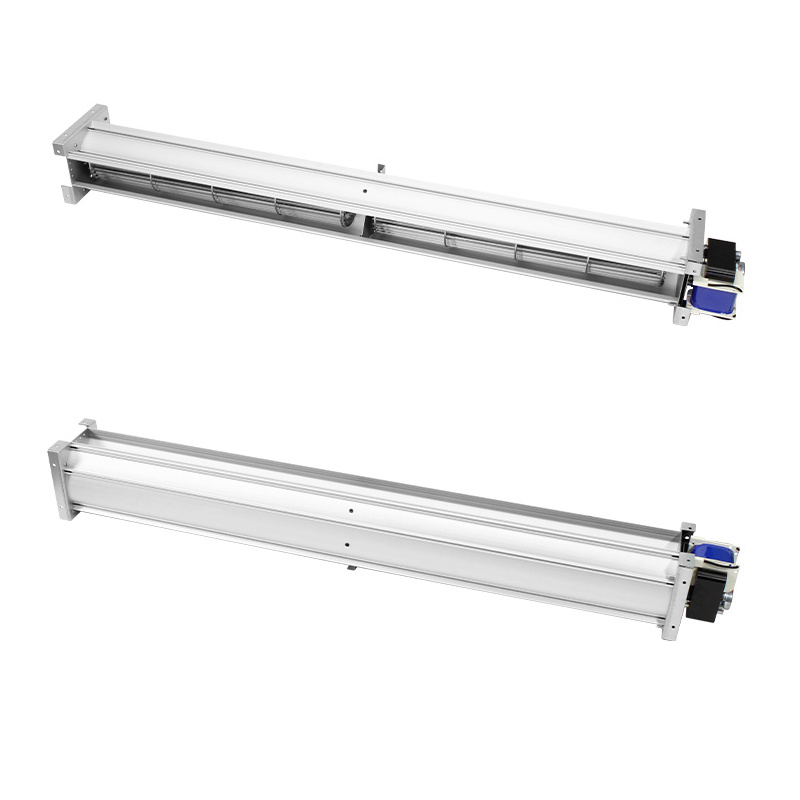

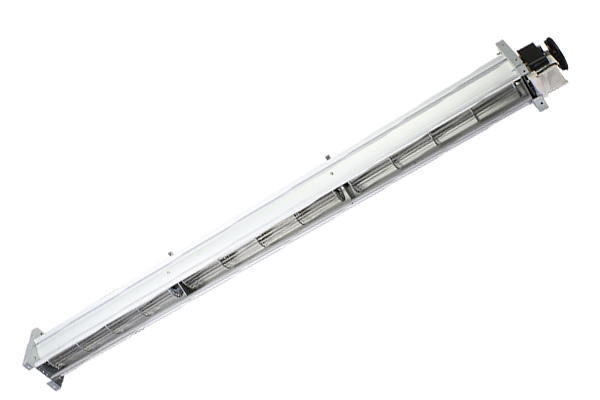

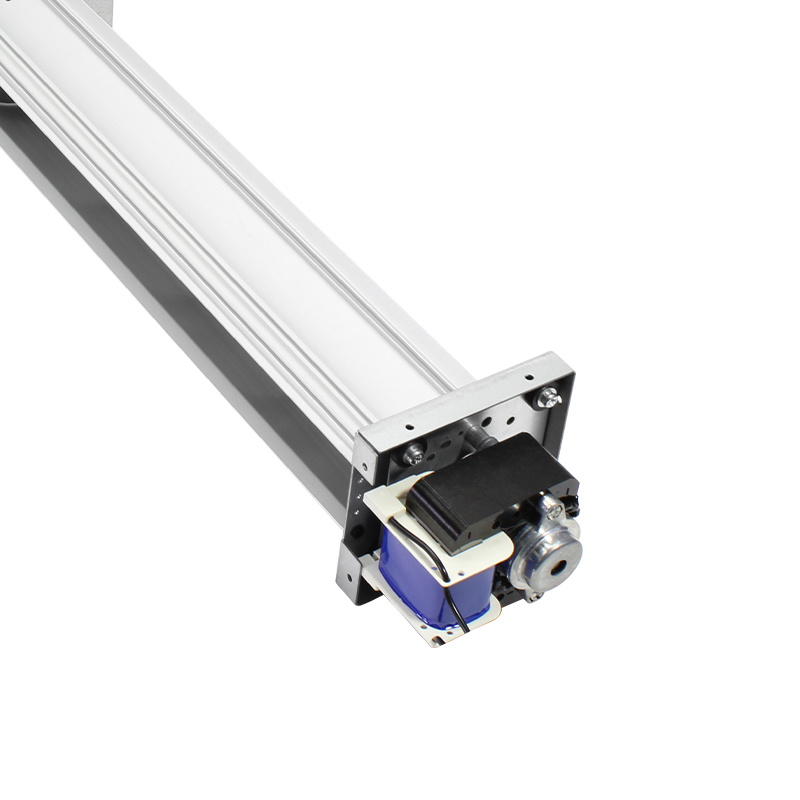

the housing of COOLCOM DC Cross flow fan was punching by precision tooling, electrophoresis treatment, delicacy appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance.

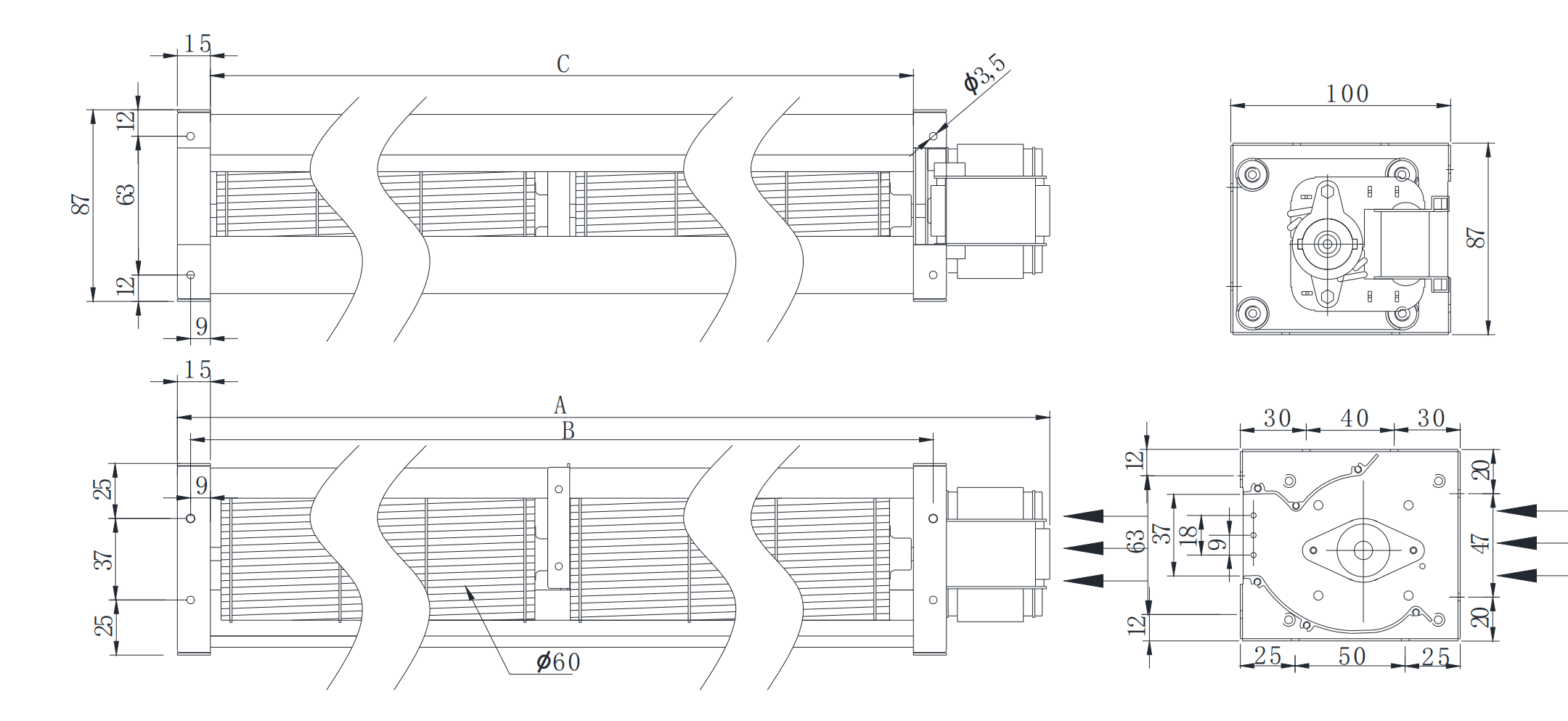

| Model | Size(mm) | Rated Voltage(V/HZ) | Input Power(w) | Speed(rpm) | Wind Speed(m/s) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60610HB02-LZ | A=686 B=628 C=610 | 220/50 | 32 | 2300 | 5.5 | 355 | 23 | 43 | Double | |
| CM60750HB02-LZ | A=831 B=768 C=750 | 220/50 | 34 | 2300 | 5.5 | 405 | 24 | 43 | Double | |
| CM60870HB02-LZ | A=951 B=888 C=870 | 220/50 | 35 | 2100 | 5.0 | 475 | 20 | 42 | Double | |
| CM60920HB02-LZ | A=1003 B=938 C=920 | 220/50 | 46 | 2500 | 6.2 | 557 | 23 | 44 | Triple | |
| CM601080HB02-LZ | A=1163 B=1098 C=1080 | 220/50 | 50 | 2300 | 5.6 | 650 | 24 | 44 | Triple | |
| CM601300HB02-LZ | A=1383 B=1318 C=1300 | 220/50 | 52 | 2200 | 5.2 | 720 | 24 | 45 | Triple |
