housing: steel , blade : aluminum
RD,tach output, PWM speed control, temperature control ,locked-rotor,polarity,waterproof

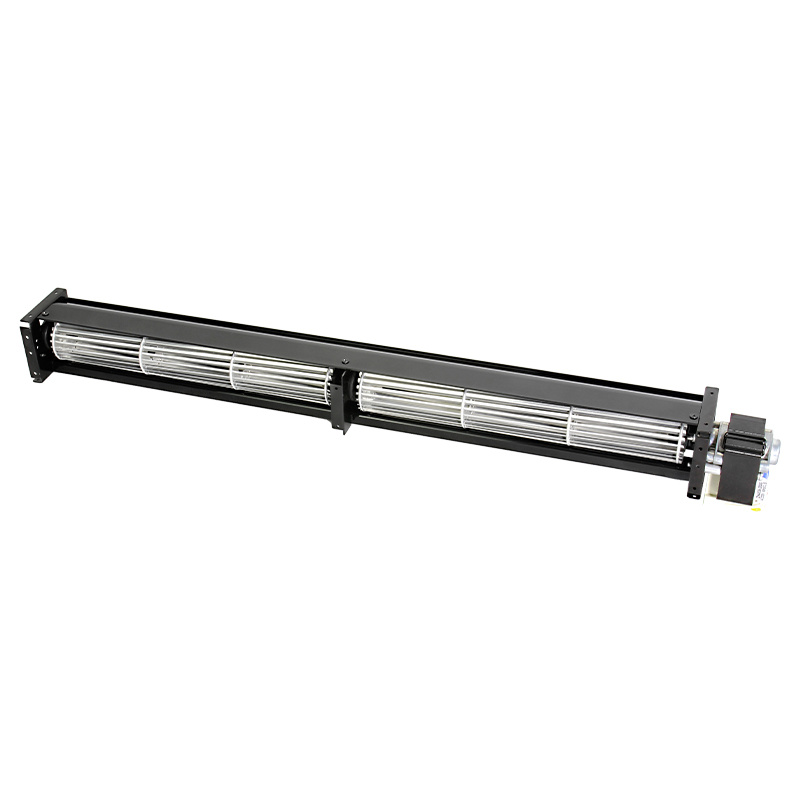

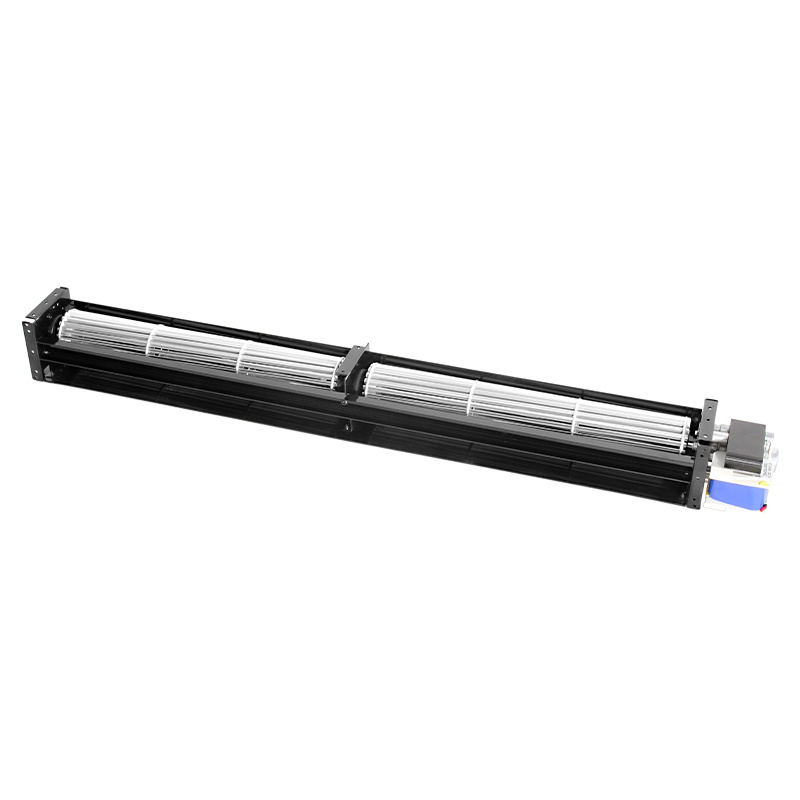

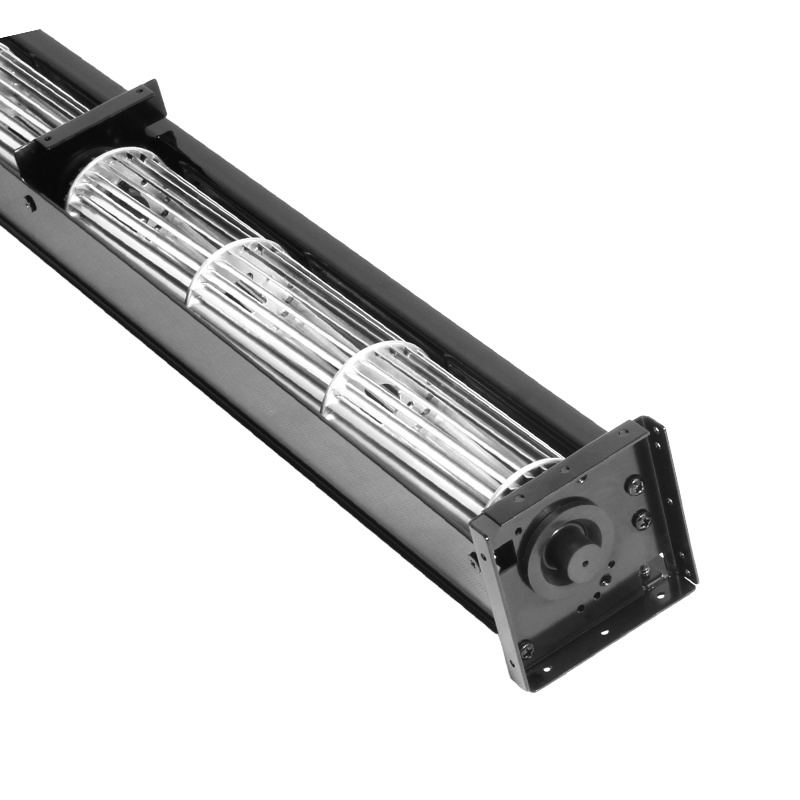

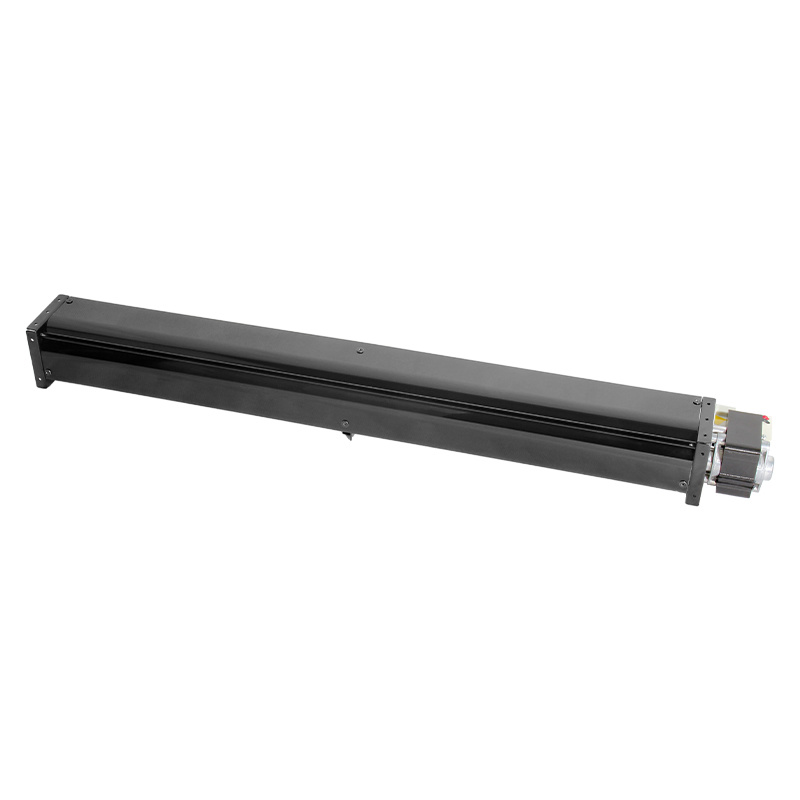

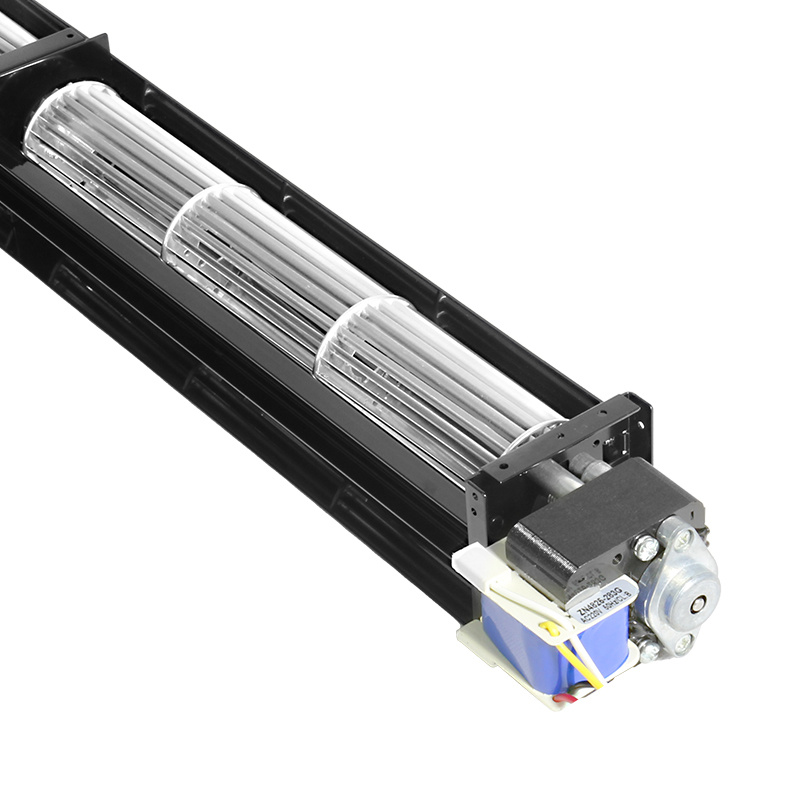

the housing of COOLCOM Tangential fan was punching by precision tooling, electrophoresis treatment, delicacy appearance, stable structure; strict static and dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume, high air pressure, and small vibration, low noise. with high-temperature-resistant high-efficiency motor, straight-connected installation, stable performance.

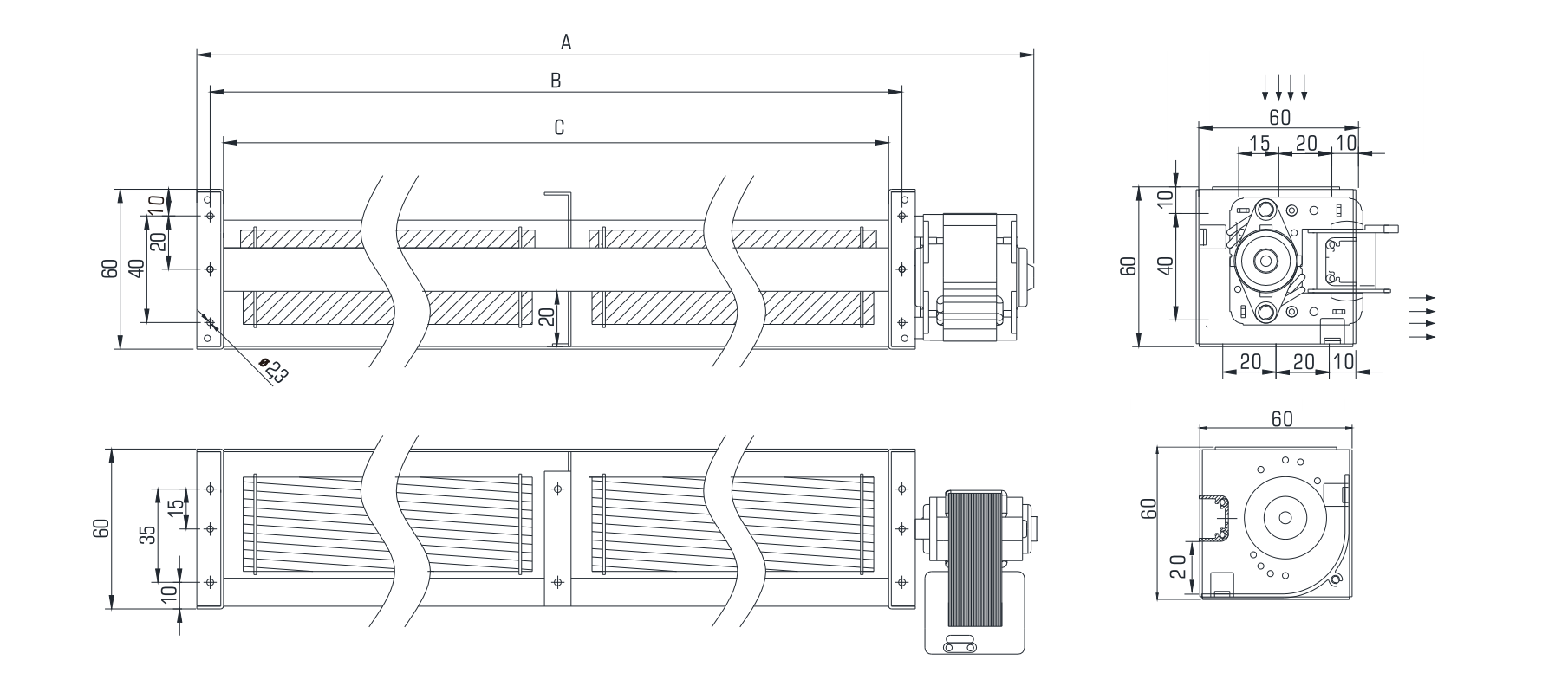

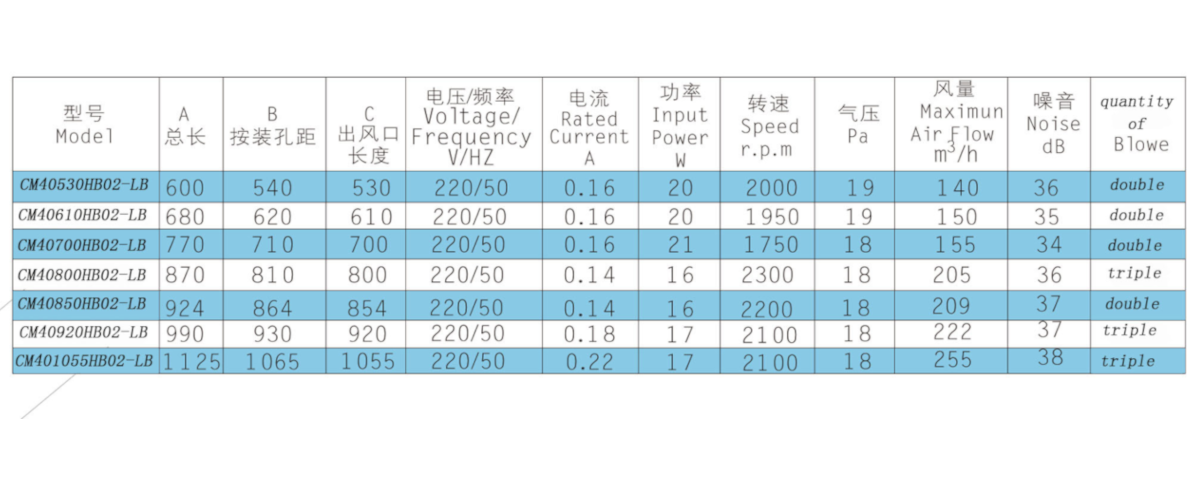

| Model | impeller Size(mm) | Bearing Type | Voltage/Frequency (V/Hz) | Current | Speed(RPM) | Air Flow(m3/h) | Pressure(Pa) | Noise(dB) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM40530HB02-LB | A=600 B=540 C=530 | NMB | 220/50 | 0.16 | 2000 | 140 | 19 | 36 | Double | |
| CM40610HB02-LB | A=680 B=620 C=610 | NMB | 220/50 | 0.16 | 1950 | 150 | 19 | 35 | Double | |
| CM40700HB02-LB | A=770 B=710 C=700 | NMB | 220V/50 | 0.16 | 1750 | 155 | 18 | 34 | Double | |
| CM40800HB02-LB | A=870 B=810 C=800 | NMB | 220/50 | 0.14 | 2300 | 205 | 18 | 36 | Triple | |
| CM40850HB02-LB | A=927 B=864 C=854 | NMB | 220/50 | 0.14 | 2200 | 209 | 18 | 37 | Double | |
| CM40920HB02-LB | A=993 B=930 C=920 | NMB | 220/50 | 0.18 | 2100 | 222 | 18 | 37 | Triple | |
| CM4010550HB02-LB | A=1128 B=1065 C=1055 | NMB | 220/50 | 0.22 | 2100 | 255 | 18 | 38 | Triple |
